Pitched roofing CUPA 37

slateroof tile lookthermal

Presentation

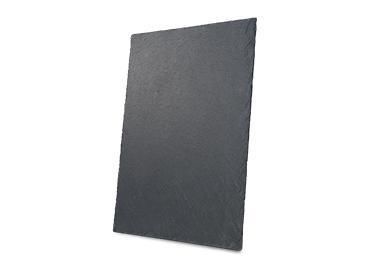

Natural non-carbonate tectonic-compression slate. Light gray colour, regular flatness and smooth texture. Cleavage available in nominal thicknesses of 3.5 mm, 4 mm and 7.5 mm.

Visual characteristics and ranges

• Colour: Light gray
• Texture: Smooth
• Flatness: Regular
• Available selections: Excellence, Ardoisier, Naturelle, Innovation
• Most common shape (France): Rectangular (other shapes available on request)

Sizes and thicknesses

• Formats: from 25x15 cm up to 50x45 cm
• Nominal thicknesses: 3.5 mm, 4 mm, 7.5 mm

Origin and quarry

• Quarry: Paraje de Rozadais (Ourense), Spain
• Operational since: in production since 1985

Certifications

• EN 12326
• 02/13 N° 37949
• BS EN 12326:2014

Technical information (summary)
Water absorption 0.16% (Code: W1 < 0.6%). Non-carbonate content 0.60% (Compliant < 1.5%). Mean characteristic breaking load (longitudinal): 49 MPa. SO2 exposure: S1. Thermal cycle: T1. Frost resistance: Compliant (< 0.6%).

Technical characteristics / specifications

• Type: Natural non-carbonate tectonic-compression slate
• Colour: Light gray
• Texture: Smooth
• Flatness: Regular
• Available formats: from 25x15 cm to 50x45 cm
• Nominal thicknesses: 3.5 mm, 4 mm, 7.5 mm
• Water absorption: 0.16% (Code W1 < 0.6%)
• Carbonate content: 0.60% (Compliant < 1.5%)
• Mean characteristic breaking load (longitudinal): 49 MPa
• SO2 exposure: S1
• Thermal cycle: T1
• Frost resistance: Compliant (< 0.6%)
• Origin: Paraje de Rozadais quarry (Ourense), Spain
• Operational since: 1985
• Commercial selections: Excellence, Ardoisier, Naturelle, Innovation
• Standards / certifications: EN 12326, 02/13 N° 37949, BS EN 12326:2014
