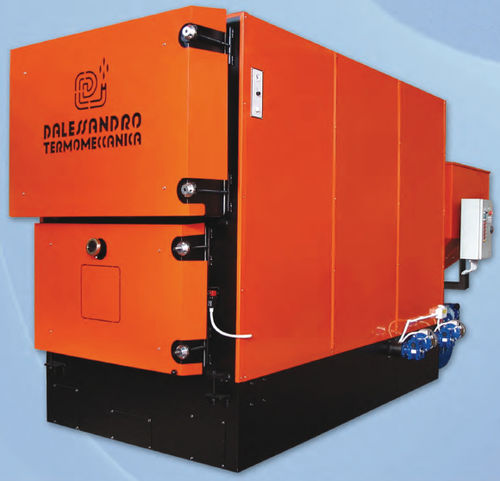

Pellet boiler CS
industrialindoormulti-fuel

pellet boiler
pellet boiler
pellet boiler
Add to favorites
Compare this product


Characteristics

Power source
pellet
Sector
industrial
Interior/exterior use
indoor
Other characteristics
multi-fuel

Description

Type Marine three-ways smoke boiler with water production for heating; Boiler shell in steel at 3 bar pressure; Doors for internal inspections and boiler cleaning; Cast iron burner with mechanical feeding system; Hopper for the combustible material; Variable speed screew for automatic feeding; Primary and secondary combustion air system; Voltage: 230 V up to 100 kW, 400 V from 130 kW up to 4100 kW. Optional Electronic board for combustible automatic ignition, fire maintenance and modulation for CS 30-100 mod. boiler Electronic control board (as specified above) with lambda sensor control device for CS 30-100 mod. boiler Electromechanical board for CS 130-4100 mod. boiler Electromechanical/electronic combined control board for combustible automatic ignition, fire maintenance, modulation and remote control system for CS 130-4100 mod. boiler Electromechanical/electronic combined control board (as specified above) with lambda sensor control device and remote control sytem for CS 130-4100 mod. boiler Ashes extractor device (cleaning efficiency 60-70%) Refractory panels into combustion chamber Retards for heat holding inside the tubes nest Automatic combustible feeding system supplied with electric board and capacitive sensors (min/max) Fire fighting system in the hopper Kit for sanitary water production, (efficiency output: from 20 to 33 kW; complete with exchanger plates, pump circulation, flow switch and three way valve) Rotary valve (to prevent flame return into the hopper) Tube nest pneumatic cleaning system (cleaning efficiency 60-70%). Compressor excluded from 130 kW up. Multi-cyclone for dust laying in the flue (flue and connections excluded)
