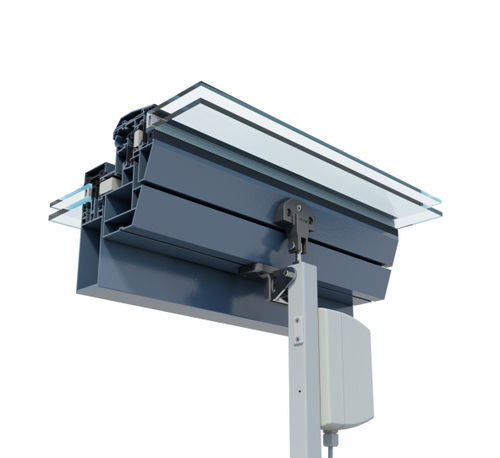

Window automation ZA 35-K-BSY+
for natural ventilationlinear drive

Window automation - ZA 35-K-BSY+ - D + H Group - for natural ventilation / linear drive
Window automation - ZA 35-K-BSY+ - D + H Group - for natural ventilation / linear drive
Window automation - ZA 35-K-BSY+ - D + H Group - for natural ventilation / linear drive - image - 2
Window automation - ZA 35-K-BSY+ - D + H Group - for natural ventilation / linear drive - image - 3
Window automation - ZA 35-K-BSY+ - D + H Group - for natural ventilation / linear drive - image - 4
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Applications
for windows
Options
for natural ventilation, linear drive

Description

Can be used for openings for smoke exhaust; D+H Euro SHEV in accordance with EN 12101‑2; and for daily ventilation With integrated BSY+ motor and synchronised electronics controlled via microprocessor Direct control via 230 V AC Option of up to 4 drives in one synchronous group Low current consumption thanks to high efficiency Option of cable infeed above and below Drive unit can be changed from left to right Running speed in CLOSED direction decreases to 5 mm/s (passive closing edge protection) Time-controlled reversing when an obstacle is detected in the CLOSED direction (active closing edge protection)
