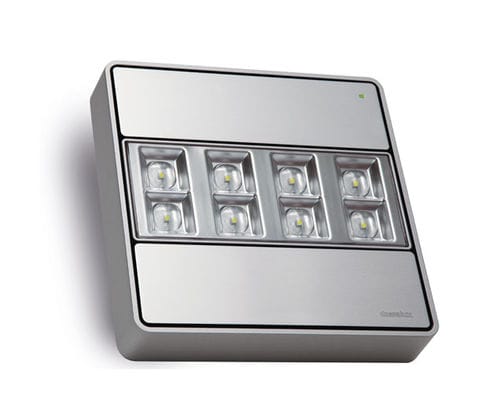

Surface mounted emergency light ATRIA
squareLEDaluminum

surface mounted emergency light
surface mounted emergency light
surface mounted emergency light
surface mounted emergency light
surface mounted emergency light
surface mounted emergency light
surface mounted emergency light
Add to favorites
Compare this product

Characteristics

Type
surface mounted
Shape
square
Light source
LED
Material
aluminum
Protection class
IP43

Description

Self-contained emergency luminaire for installation at significant heights and in large indoor spaces. The frame, manufactured in aluminium, in addition to the sink is the support for the electronic system, the batteries and the optical group. It consists of 4 or 8 LEDs of 10W with independent lenses that are illuminated if the mains fails. The combined use of specific lenses and aluminium-coated reflectors ensure optimum performance in open area lighting and escape routes. Suitable for mounting on walls or ceilings. Characteristics: Format: Atria Operation: Non-maintained A/TCA - Maintained A/TCA Voltage: 220/230V 50/60Hz Autonomy (h): 1, 2, 3 Emergency lamp: 4 or 8 LEDs 10W Lumens: 1000/2500 Lm Charging indicator: LED Mains lamp: LED Degree of protection: IP43 IK04 Electrical insulation: Type II Test device: For AutoTest and TCA models Remote stand-by: Yes
