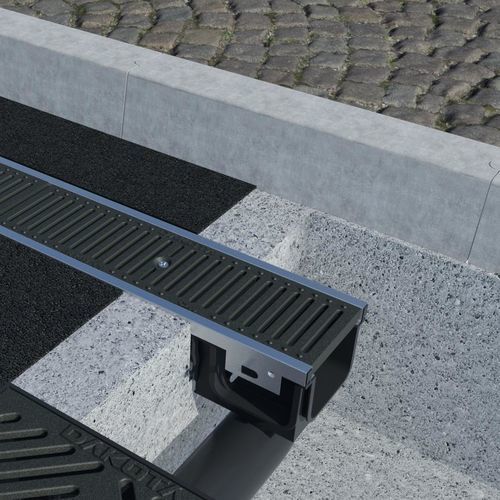

Drainage channel with grating TAURUS 130
singlehigh-density polyethylene (HDPE)cast iron grate

Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 2
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 3
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 4
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 5
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 6
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 7
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 8
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 9
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 10
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 11
Drainage channel with grating - TAURUS 130 - DAKOTA - single / high-density polyethylene (HDPE) / cast iron grate - image - 12
Add to favorites
Compare this product
Go to the DAKOTA website for more information

Characteristics

Configuration
with grating, single
Material
high-density polyethylene (HDPE)
*grid material
cast iron grate, stainless steel grate, steel grate
Applications
for public spaces, for airport, for sports fields, building
Color availability
black
Level of traffic
for pedestrian area, for heavy traffic
Other characteristics
rainwater, safety
Length

400 mm, 1,000 mm
(16 in, 39 in)

Width

40 mm, 75 mm, 150 mm, 500 mm
(2 in, 3 in, 6 in, 20 in)

Depth

130 mm, 200 mm
(5.12 in, 7.87 in)

Description

Channel for the collection of meteoric waters. The material has an excellent resistance to chemicals and organic agents and it is “self-cleaning”. This channel is shock resistant, unbreakable and can guarantee high performances even in presence of thermal shock (from -40° C to 100° C). It is available only in black colour, in different designs and sizes. External inlet diameters are 50/63/75/100 mm, bottom outlet diameters are 75/100 mm. USE Used for the collection and drainage of rainwater and for the discharge of liquids for industrial use. It can be combined with a wide range of gratings in order to be used in pedestrian areas, driveways, roads, highways, ports and airports.
