Modular gabion DAK-ROCK HEAVY

for ground stabilizationdrainageload-bearing

Product description

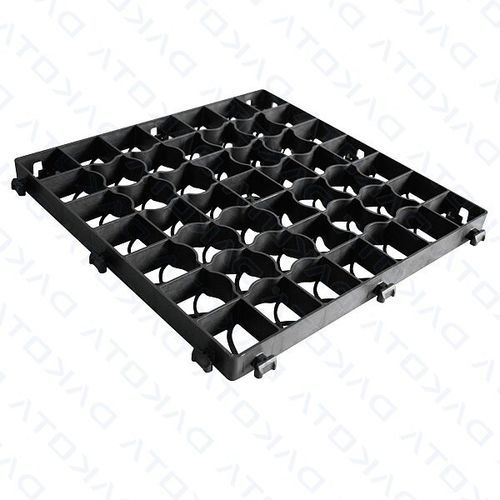

Dak-Rock Heavy is a ground reinforcement paving grid designed to stabilize gravel and improve natural water drainage while preventing soil erosion. Panels interlock to form a continuous surface that becomes virtually invisible once filled with aggregate, gravel or turf, offering an alternative to rigid pavements for pedestrian and light vehicular areas.

Materials

• Recycled polypropylene (PP)

Applications

• Driveways, parking areas and light vehicle access
• Pedestrian paths, courtyards and recreational areas
• Gravel and turf stabilization, erosion control and permeable surfaces

Interlocking system and maintenance
The panels feature a side click interlock to connect modules into a stable continuous surface. To remove a panel use a lever tool (for example a flat head screwdriver):

• Insert the tool into the locking point between panels
• Press to open the clip and disconnect the module
• Lift and remove the panel

Articles

• GAR01-0022N — Dak-Rock Heavy | H 39 - 500 x 500 mm | Ground paving grid - Black
• GAR01-0022GV — Dak-Rock Heavy Green | H 39 - 500 x 500 mm | Ground paving grid - Green
• GAR01-0022/TBF4 — White placeholder cap for parking lines | — | Accessory for Dak-Rock Heavy

Certifications / Documents
Technical datasheets and product documentation are available for the listed articles.

Technical specifications

• Brand: Dakota
• Model: Dak-Rock Heavy
• Material: Recycled polypropylene (PP)
• Panel size: 500 x 500 mm
• Panel height: 39 mm
• Colour variants: Black (GAR01-0022N), Green (GAR01-0022GV)
• Interlocking: Side click interlock for continuous surfaces
• Recommended infill: Aggregate, gravel or turf
• Applications: Pedestrian and light vehicular areas, parking, driveways, erosion control
