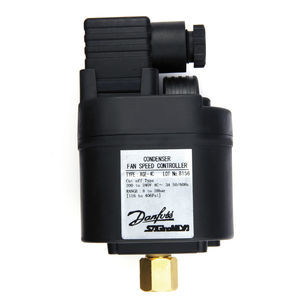

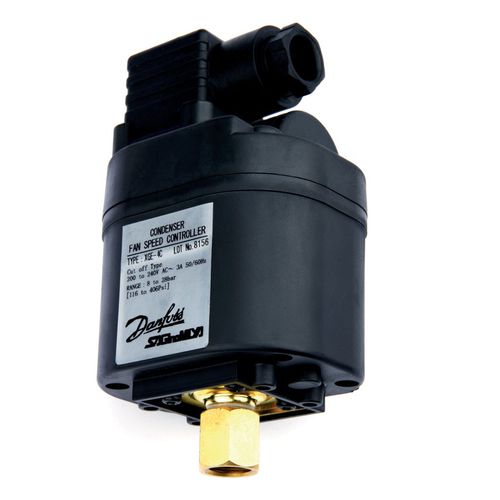

Cooling speed controller XGE-4M

for ventilation

Factory setting [bar]: 19.00, Number of Phases: 1, P band max. [bar]: 6.0, Regulation range [bar] Pe [Min]: 10.00, Regulation range [bar] Pe [Max]: 25.00, Gross weight - 0.27 kg Net weight - 0.26 kg Ambient temperature range [°C] [Max] - 55 °C Ambient temperature range [°C] [Min] - -20 °C Ambient temperature range [°F] [Max] - 131 °F Ambient temperature range [°F] [Min] - -4 °F Approval - CE Burst pressure [bar] - 131 bar Burst pressure [psig] - 1900 psig Enclosure rating IP - IP65 Factory setting [bar] - 19 bar Factory setting [psig] - 276 psig Frequency [Hz] - 50/60 Hz Housing - CLOSED Max. current output/phase [A] - 3 A Max. Working Pressure [bar] - 47 bar Max. Working Pressure [psig] - 681 psig Min speed setting [ - 35%@60Hz 45%@50Hz Number of Phases - 1 P band max. [bar] - 6 bar P band max. [psi] - 87 psi Packing format - Multi pack Pressure connection notes - with Schrader Pressure inlet conn. size [in] - 1/4 Pressure inlet conn. std. - DIN 8906 Pressure inlet conn. type - Flare Pressure inlet Internal/Extern - Internal Product accessories - No Product group - Electronic controllers Quantity per packing format - 50 pc Refrigerants - R134a R22 R404A R407C R407F R448A R449A R450A R452A R513A R407H R449B Regulation range [bar] Pe [Max] - 25 bar Regulation range [bar] Pe [Min] - 10 bar Regulation range [MPa] Pe [Max] - 2.5 MPa Regulation range [MPa] Pe [Min] - 1 MPa Regulation range [psig] Pe [Max] - 363 psig Regulation range [psig] Pe [Min] - 145 psig Serviceable - No Supply voltage [V] AC [Max] - 240 V Supply voltage [V] AC [Min] - 200 V
