Temperature range [°C]: -50 - 800, Protection tube material: AISI 316 Ti, Electrical connection size: 2 wire
Gross weight - 0.18 kg
Net weight - 0.17 kg
EAN - 5702423232956
Ambient temperature max. [°C] - 200 °C
Ambient temperature max. [°F] - 392 °F
Cable length [in] - 78.74 in
Cable length [m] - 2 m
Cable tempr. range [°C] [Max] - 260 °C
Cable tempr. range [°C] [Min] - -60 °C
Cable tempr. range [°F] [Max] - 500 °F
Cable tempr. range [°F] [Min] - -76 °F
Cable type - PFA TC, screened
Electrical connection size - 2 wire
Enclosure rating IP - IP65
Extension length [in] - 8.46 in
Extension length [mm] - 215 mm
Insertion length [in] - 6.89 in
Insertion length [mm] - 175 mm
Output signal - mV
Packing format - Multi pack
Product group - Sensors

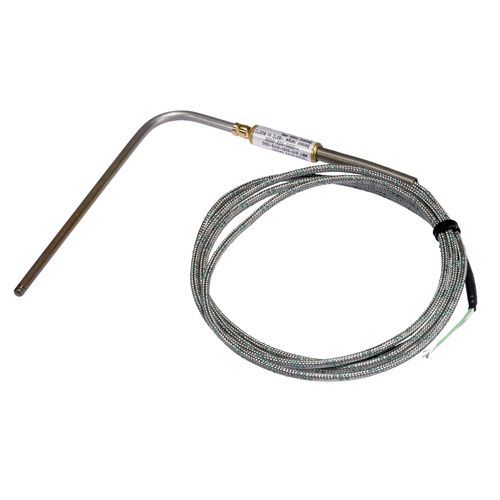

Product name - Temperature sensor
Protection tube diameter [in] - 0.24 in
Protection tube diameter [mm] - 6 mm
Protection tube material - AISI 316 Ti
Quantity per packing format - 10 pc
Sensor element standard - EN 60584-2
Sensor element tolerance - Class 2
Sensor Insert - Fixed
Temperature range [°C] [Max] - 800 °C
Temperature range [°C] [Min] - -50 °C
Temperature range [°F] [Max] - 1472 °F
Temperature range [°F] [Min] - -58 °F
Thermocouple - 1 x NiCr-Ni, Type K
Thermocouple design std. - EN 61515
Thermocouple tolerance - EN 60584-2 Class 2
Type - MBT 5111
Type designation - 00 MBT 5111-0101-0175-1
01 -0250-002-0000
