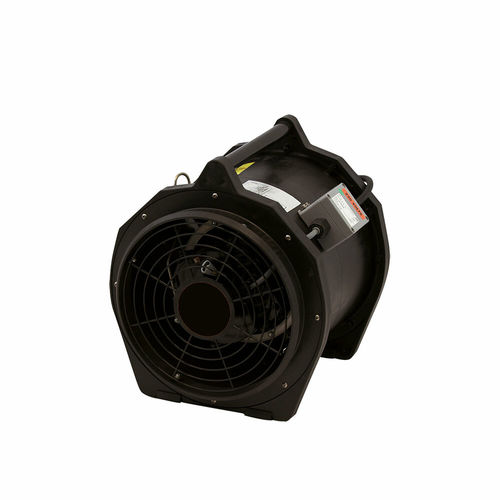

Axial fan EFI 75XX
ductfloorindustrial

axial fan
axial fan
axial fan
axial fan
axial fan
Add to favorites
Compare this product


Characteristics

Type
axial
Installation
duct, floor
Sector
commercial, industrial
Material
plastic, ABS
Location
indoor, outdoor
Color
black
Air flow

4,250 m³/h
(150,087.3 ft³/h)

Noise level

89 dB

Weight

20 kg
(44.09 lb)

Height

406 mm
(16 in)

Width

381 mm
(15 in)

Length

406 mm
(16 in)

Power

560 W

Description

In potentially explosive environments, the transport ventilator Efi 75xx is the right choice. They draw off dangerous gases safely and quickly. The casing is made of a robust ABS carbon plastic passes voltage into the floor and thus prevents static charges and for this reason dangerous sparking. The casing and motor sealing is in keeping with the high protection class IP65 and offers an effective protection against dust and water. Anti-static hoses ensure safe operation. ATEX: motor/housing: II 2 G Ex db eb IIB T6 Gb, II 2 G Ex IIB T6 Gb, Zone 1+2 Special features in explosion-proof areas Installation conditions and different hazardous areas have to be observed. Connect device to explosion-proof power socket only. Earth anti-static hoses, when required. Fans for explosive atmospheres Fans with ATEX approval may be operated in Zone 1 and 2. Zone 1 is an area in which a hazardous explosive atmosphere consisting of a mixture of air and flammable gases, vapours or mists is likely to occur in normal operation occasionally. The equipment is approved for substance group IIB. A typical gas for group IIB is ethylene with an ignition energy of 60 - 180 mJ. Ventilation of shafts If the existing natural ventilation in shafts and duct systems is not sufficient due to local conditions such as the location of the shafts or their cover properties, additional, technical ventilation measures become necessary. Especially in warm temperatures, when the air in the manhole is cooler than that in the surrounding area, it is often not possible to provide sufficient ventilation. Even temporarily opening manhole covers is not always sufficient for optimal ventilation.
