Free-standing dehumidifier CALOREX DH 300

industrialcommercialcondensing

Product overview

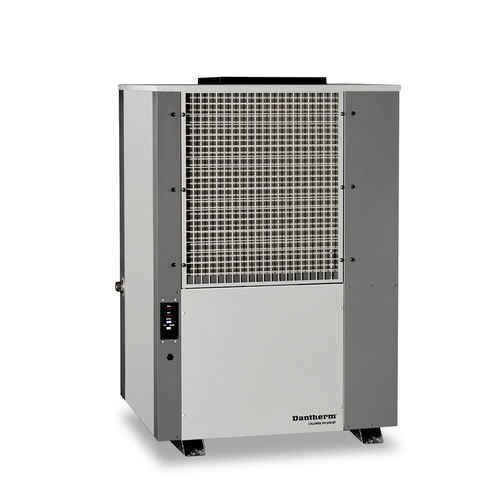

The Calorex DH 300 is a high-capacity floor-standing condensation dehumidifier with fully automatic operation. It features an integral humidistat and optional heating, and a standard constant-flow fan (applies to DH 150–300) that self-regulates against external duct losses. The unit is suited to warehousing and storage, substations and data centres where reliable humidity control is required.

Key features

• Self-contained unit with fully automatic control
• Integral humidistat for setpoint control
• Constant-flow fan – automatically adjusts to ducting and external pressure loss
• Polyester-coated evaporator and condenser for corrosion resistance
• Plastisol-coated galvanised steel cabinet
• Reverse-cycle defrost for very low temperature operation

Options

• Return air filter
• Condensate pump

Technical specifications

• Operating temperature range: -15 °C to 35 °C
• Dehumidification capacity (30 °C / 60% RH): 300 l/24h
• Heat recovered to air (30 °C / 60% RH): 14.7 kW
• Air flow: 5,000 m³/h
• Available external static pressure: 0–140 Pa
• Sound pressure level @ 3 m: 66 dB(A)
• Electrical supply: 400 V / 3ph / 50 Hz
• Nominal power consumption: 7.3 kW
• FLA: 19 A — Maximum supply fuse: 24 A — LRA (compressor start): 66 A
• Refrigerant: R407c — gas weight / CO2 equivalent: 10.0 kg / 17.74 t
• Dimensions (W x D x H): 980 x 826 x 1475 mm
• Weight: 220 kg
• Condensate drain connection: 1½ BSPM
