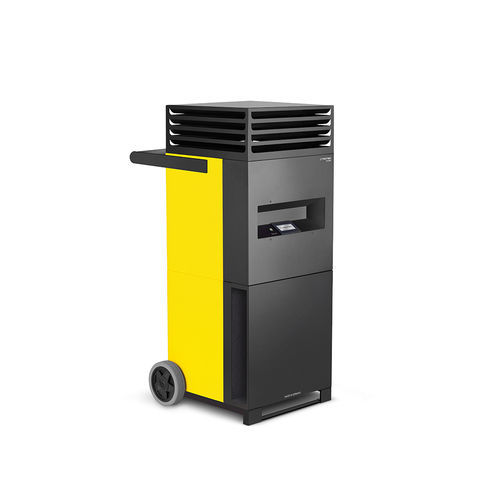

Commercial air handling unit TAC XT 27

industrialindoorcompact

Overview
The TAC XT 27 is a mobile multi air handler for professional room heating, optional H14 HEPA air purification, thermal decontamination and thermal disinfestation. With a compact, robust design and 27 kW heating capacity, it enables rapid, controlled temperature treatment and air purification in varied industrial and commercial locations. The unit includes a touchscreen with automatic control programs and features automatic filter regeneration for improved filter hygiene.

Key features

• 4-in-1 device: automatic room heating (with/without HEPA purification), thermal decontamination, thermal disinfestation and professional pest control
• Adjustable target temperature for room or surface from 0 up to 75 °C (operation up to 95 °C air outlet)
• Balanced system components for diverse applications
• Treatment cycles adjustable from 10 minutes up to 16 hours
• Optional H14 HEPA filtration for virus removal and improved filtration hygiene

Operation & control

• Programmable touchscreen display with automatic control and integrated application programs
• Software updates via USB
• Automatic filter change indicator and automatic filter regeneration

Additional features

• Robust, mobile and compact design for easy relocation and setup
• Optional stainless steel construction for demanding environments

Suitable for

• Agriculture
• Commercial buildings
• Transport and logistics

Product specifications (table)

• Heating power: 27 kW
• Max. air outlet temperature: up to 95 °C
• Airflow without/with H14 filter: 2,500 / 1,200 m³/h
• Fan type: radial
• Sound values (ISO 11203): approx. 35–59 dB(A)
• Power supply: 2 x 380–480 V, 3-phase, 50–60 Hz
• Rated current: 32 A (connection plugs CEE 32 A, CEE 16 A)
• Electric power consumption: 27 kW
• Dimensions (L x W x H): 690 x 630 x 1,300 mm
• Dimensions (with FlowExtender): 690 x 630 x 2,300 mm
• Weight: 96 kg

Technical specifications

• Programmable touchscreen and automatic control with pre-set application programs
• Software updatable via USB
• Automatic filter change indicator and automatic filter regeneration
• Optional H14 HEPA filtration for virus removal
• Adjustable treatment cycles: 10 minutes up to 16 hours
• Available in stainless steel for demanding environments
