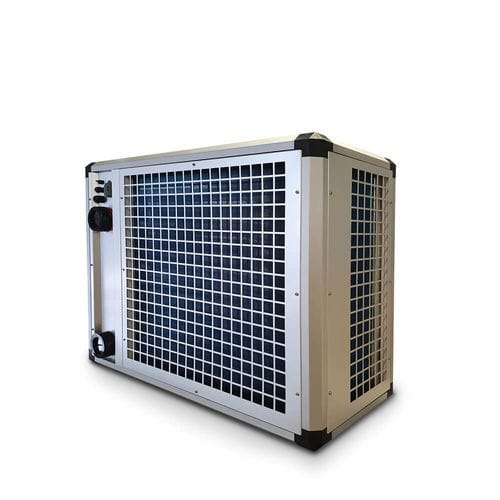

Electric pool heater SET I-SILENT 10-15

for in-ground swimming poolsfor above-ground pools

Overview
SET i-Silent inverter heat pumps are engineered for heating small to medium outdoor and indoor swimming pools and spas. They provide high heating output with low energy consumption — about half the energy of conventional on/off pool heat pumps and roughly one tenth of gas or electric heaters. Units use R32 refrigerant, require no fuel storage and emit no fumes. Rated to operate down to -10 °C, i-Silent models extend the pool season while ensuring quiet, reliable and flexible operation.

Key features

• Inverter heat pump (variable-speed compressor)
• Average COP 9.7 — approximately 2× more efficient than on/off heat pumps
• Eco-friendly refrigerant R32 (low GWP: 675)
• Performance range: 10.2 to 14.1 kW depending on model
• Whisper Mode: 9–11 dB(A) noise reduction versus equivalent on/off units
• Multifunction operation: heating, heat/cool and cooling modes

New refrigerant gas

• Low global warming potential (GWP 675)
• Zero ozone depletion potential (ODP = 0)
• Compliant with F-gas phase-down requirements
• Requires less refrigerant per kW and is easier to recover/recycle

Benefits

• All-year heating capability for outdoor and indoor pools
• Operates down to -10 °C ambient temperature
• High heating performance at lower ambient temperatures — fast warm-up at season start
• Suitable for pool heating at altitude
• Cooling function available on applicable models
• Highest-efficiency models deliver top COP values
• Built-in Wi‑Fi and PoolTherm app support for remote monitoring and control
• Winter protection cover included

Applications

• Outdoor pools
• Private/residential pools
• Spa pools
• Therapy and wellness pools

Product specifications — i-Silent 10 (selected rows)
Operating temperature range: -10–40 °C
Water temperature range: 12–40 °C
Performance (air 15 °C, 70% RH; water 26 °C) — Heating capacity: 10.2 kW
Performance (air 5 °C, 70% RH; water 10 °C) — Heating capacity: 7.4 kW
Performance (air 35 °C, 80% RH; water 28 °C) — Cooling capacity: 6.5 kW
Power supply: 230 V / 1ph / 50 Hz
Rated input power: 2.2 kW
Rated input current: 10 A
Maximum input current: 13.5 A
Water flow: 4–6 m³/h
Water connection: DN40 / DN50
Compressor: Inverter
Condenser: Titanium
R32 refrigerant weight / CO2 equivalent: 0.9 kg / 0.61 t CO2-eq
Sound level @ 10 m: 20.5–24.0 dB(A)
Sound level @ 1 m: 40–45 dB(A)
Product size (W×D×H): 980 × 360 × 680 mm
Weight: 55 kg

Product specifications — i-Silent 15 (selected rows)
Operating temperature range: -10–40 °C
Water temperature range: 12–40 °C
Performance (air 15 °C, 70% RH; water 26 °C) — Heating capacity: 14.1 kW
Performance (air 5 °C, 70% RH; water 10 °C) — Heating capacity: 9.5 kW
Performance (air 35 °C, 80% RH; water 28 °C) — Cooling capacity: 9.3 kW
Power supply: 230 V / 1ph / 50 Hz or 400 V / 3ph / 50 Hz (model dependent)
Rated input power: 3.1 kW
Rated input current: example values 13.6 A / 3 × 4.5 A (depending on supply)
Maximum input current: example values 17.0 A / 3 × 5.8 A (depending on supply)
Water flow: 7–10 m³/h
Water connection: DN40 / DN50
Compressor: Inverter
Condenser: Titanium
R32 refrigerant weight / CO2 equivalent: 1.2 kg / 0.81 t CO2-eq
Sound level @ 10 m: approx. 20.5–33.5 dB(A) depending on mode
Sound level @ 1 m: approx. 40–53 dB(A) depending on mode
Product size (W×D×H): 980 × 420 × 780 mm
Weight: 70 kg

Technical specifications

• Models: SET i-Silent series (examples: i-Silent 10, i-Silent 15)
• Refrigerant: R32 (low GWP, ODP = 0)
• Compressor type: inverter (variable-speed)
• Condenser material: titanium
• Operating ambient temperature: down to -10 °C
• Water connection options: DN40 / DN50
• Wi‑Fi and PoolTherm app support for remote monitoring/control
• Noise reduction features including Whisper Mode
• Typical heating capacities: ~10.2 kW (i-Silent 10) to ~14.1 kW (i-Silent 15)
• Typical cooling capacities (where applicable): ~6.5–9.3 kW
• Typical product dimensions and weights: e.g. 980×360×680 mm / 55 kg (i-Silent 10); 980×420×780 mm / 70 kg (i-Silent 15)
