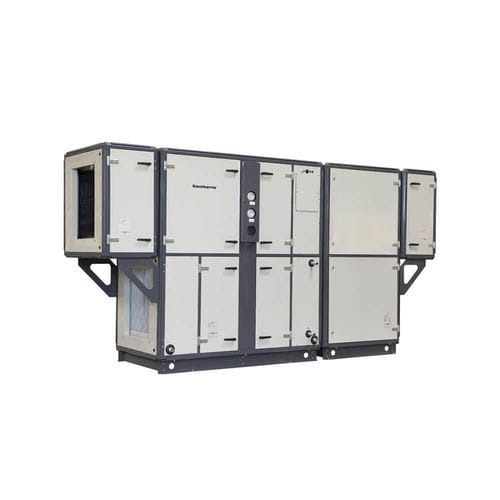

Commercial air handling unit DANX XKS

indoor

Product overview
The DanX XKS is an outdoor air handling and dehumidification unit designed for swimming pools and commercial wet environments. It integrates a high-efficiency crossflow heat exchanger and a mixing function to supply only the required outdoor air to the pool hall, reducing operational costs. The unit provides free-cooling via a built-in bypass, offers an optional additional cooling coil for hot climates, and supports multiple fan, filter and coil configurations to meet project-specific requirements. Modular construction with pre-wired sensors and electrical components enables rapid on-site installation.

Key features

• Control system with demand management and automatic monitoring/control of pool hall temperature and humidity
• Crossflow heat exchanger with efficiency >75% and low pressure drop
• Built-in bypass for free cooling in summer
• Energy-efficient EC plug fans
• Bag filter options in various lengths and efficiencies with low pressure drop
• Load-bearing modular frame with hot-dip galvanised, powder-painted sandwich panels (50 mm mineral wool insulation)
• Designed for aggressive pool environments (corrosion class C4 per EN/ISO 12944-2): epoxy-coated heat exchanger, coated heating coil fins, epoxy-coated fasteners
• IP66-rated damper motors suitable for pool use
• Large inspection doors with robust hinges, tongue locks and handles for easy maintenance
• Modular unit for fast installation; separate control panel with quick-connect cables and plugs
• BMS communication: Modbus or BACnet

Product specifications — selected models (values shown as on product page)
2/4 XKS
Nominal air volume: 3,350 m³/h
Max. air volume: 4,500 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 22 kg/h
Max. total power consumption: 2.2 kW
Power supply: 400/3ph/50 V/Hz
Height: 1,600
Width: 3,101
Depth: 880
Weight: 850 kg

3/6 XKS
Nominal air volume: 4,500 m³/h
Max. air volume: 6,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 29 kg/h
Max. total power consumption: 3.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 1,960
Width: 3,572
Depth: 880
Weight: 925 kg

5/10 XKS
Nominal air volume: 8,400 m³/h
Max. air volume: 10,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 54 kg/h
Max. total power consumption: 6.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 2,120
Width: 3,712
Depth: 1.4
Weight: 1,300 kg

7/14 XKS
Nominal air volume: 12,500 m³/h
Max. air volume: 14,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 81 kg/h
Max. total power consumption: 11.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 1,960
Width: 3,572
Depth: 880
Weight: 1,675 kg

9/18 XKS
Nominal air volume: 15,500 m³/h
Max. air volume: 20,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 100 kg/h
Max. total power consumption: 15.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 2,250
Width: 4,080
Depth: 1.8
Weight: 1,925 kg

12/24 XKS
Nominal air volume: 21,500 m³/h
Max. air volume: 26,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 139 kg/h
Max. total power consumption: 22.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 3,010
Width: 5,100
Depth: 2.2
Weight: 3,300 kg

16/32 XKS
Nominal air volume: 25,500 m³/h
Max. air volume: 32,000 m³/h
Outdoor air volume: 0-100 %
Dehumidification capacity (VDI 2089): 165 kg/h
Max. total power consumption: 60.0 kW
Power supply: 400/3ph/50 V/Hz
Height: 3,010
Width: 5,100
Depth: 2.2
Weight: 3,300 kg

Technical specifications

• Crossflow heat exchanger: efficiency >75% with low pressure drop
• Free-cooling bypass for 100% outdoor air in summer
• Optional additional cooling coil for enhanced dehumidification/air cooling
• EC plug fans for high energy efficiency
• Filter options: bag filters in multiple lengths and efficiencies
• Modular load-bearing frame with hot-dip galvanised, powder-painted sandwich panels (50 mm mineral wool)
• Constructed for corrosion class C4 (EN/ISO 12944-2): epoxy-coated coils and protected fasteners
• IP66 damper motors suitable for pool environments
• Large inspection doors with durable hardware for easy service access
• Pre-wired sensors and electrical components; separate control panel with quick-connect cables
• BMS integration options: Modbus or BACnet

Applications

• Swimming pools and leisure centres
• Recreation facilities and commercial wet environments
• Any project requiring controlled humidity and air quality in aggressive, chlorinated atmospheres
