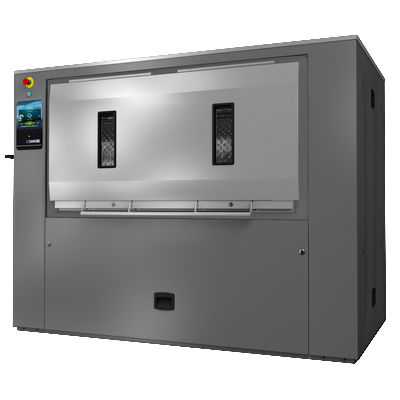

Standard models from 27 to 70 kg can be equipped with options specifically adapted to cleanrooms so that the machines perfectly meet the needs and requirements of each facility.
Soft mounted, pass through barrier washers,
G factor 375,
Extraction speed 920 RPM
Electric, steam or dual heating
Horizontally suspended drum by two axles.
Outer casing in grey skinplate, top panel in stainless steel.
AISI 304 stainless steel vat and drum.
7" ET2 touch screen, double display
3 water inlets.
8 signals for dosing pumps
Central drain valve.
Automatic positioning of drum with motor brake
Electric wires tagged, AISI 304 special clean pannels, base in galva
Indirect Steam, external heat exchanger
2x water inlet valves in S/S set, St. Steel manifold air entering + HEPA filter 14 + inox dosing connection
3x water inlet valves in S/S set, St. Steel manifold air entering + HEPA filter 14 + inox dosing connection
Titration valve in st. Steel AISI 304
Special Left Side drain valve (seal) and lateral panel in 2 parts
Base in st. Steel AISI 304 base (all chassis in stainless steel)
Outer drum in st. steel AISI 316L
Inner drum in st. steel AISI 316L
Electroplating outer drum
Electroplating inner drum
Base for 850mm loading height in st. Steel AISI 304
Easy to install and maintain, these models are controlled by the ET2 microprocessor allowing to create, import or export as many specific programs as necessary.
