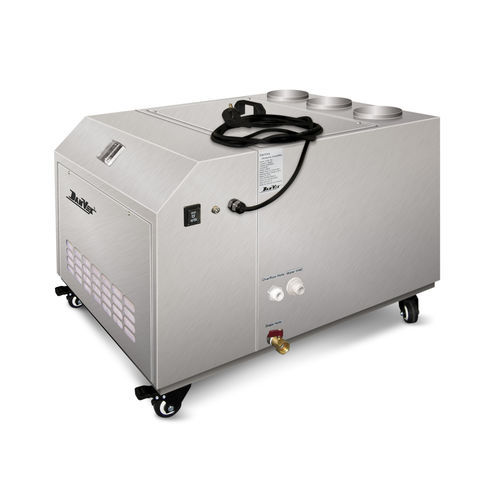

DanVex industrial ultrasonic humidifiers are capable of maintaining humidity levels up to 100%. The temperature of the “fog” formed depends on the temperature of the water supplied. DanVex humidifiers are designed to be placed directly in the floor service area, but allow wall mounting.
Principle of operation.
Humidification of the air in the room occurs due to ultrasonic atomization of water in the humidifier housing and the movement of water particles through the steam pipe using the flow of air created by the integrated fan.
DanVex HUM-S series humidifiers are equipped with an electronic control panel. Humidity level control is carried out using a remote humidistat. The humidifier operates automatically. When the set humidity is reached, the humidifier will turn off and enter humidity control mode. When the humidity drops more than 2% of the set value, the humidifier turns on.
Characteristics:
• compact stainless steel body;
• ease of installation and maintenance;
• instant preparation for work;
• modern and practical design;
• uniform steam supply;
• safe steam temperature;
• low operating and maintenance costs;
• high fire safety thanks to the absence of heating elements;
• the small size of water particles contributes to the rapid absorption of air;
• remote hygrostat for indoor humidity control;
• mechanical water filter included
Maximum productivity 24 l/hour
Working range +5 to +38 °C
Operating range, %RH 0-100%
Supply air consumption 480 m3/h
Voltage 230V/50Hz
Static pressure 50 Pa
Max. power consumption 2500W
Size without packaging 640*640*500, mm.
Net weight 54 kg
