Public space stormwater management module MARINO CELL

in-ground

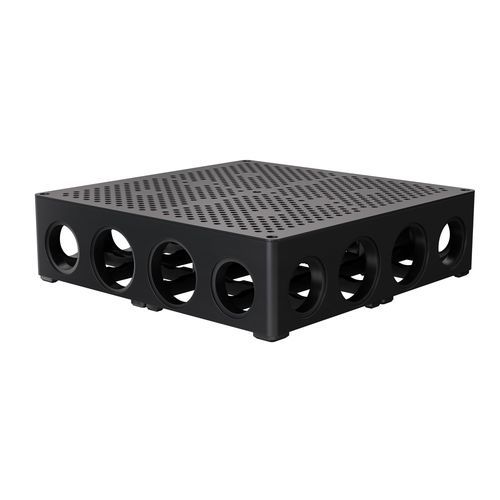

The DeepRoot Marino Cell is a shallow stormwater storage module. It features a shallow profile and a stackable design (up to four frames tall), allowing for customizable chamber sizes to fit nearly any project specification. It can also be installed at very shallow depths for added field versatility. Stormwater detention, infiltration, and harvesting can be achieved with the Marino Cell. It has a shallow depth of cover and meets HS-20 loading standards with very little cover requirements (utilizing a single deck atop any number of stacked frames). The Marino Cell features two sizes of utility pipe inlets for easy pass-through access. Simple, Adaptable Marino Cell is composed of only two components: the frame and the deck. This simplicity allows you to craft a customizable chamber size for your project by selecting the system’s depth (up to four cells high) and its footprint (the cells are modular for simple install and size adaptability). Each frame measures 6” tall with a 24”x 24” footprint One to four frames (6” to 24” in total height) can be utilized in a stacked formation Two sizes of pipe inlets provide utilities with simple pass-through access A single deck is then placed on top for structural strength Applications The DeepRoot Marino Cell is the perfect green solution for a variety of project applications, including: Bioretention Permeable Pavement Micro Drainage Green Roofs New Tree Watering
