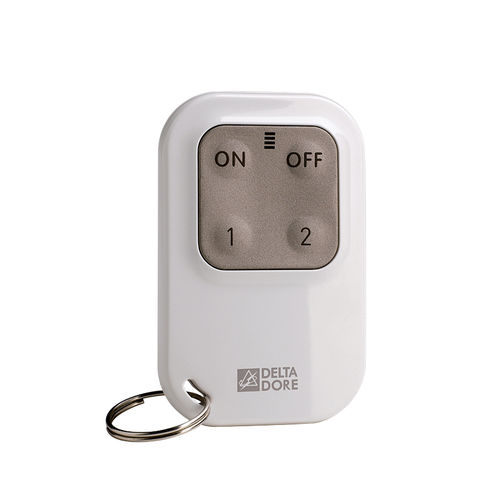

Wireless remote control for alarms and/or control systems
The benefits of using TYXAL+ TL 2000 :
Practical, lightweight design
Multi-use remote control to control the alarm or various control mechanisms
Individual transmitter for TYBOX 137 programmable thermostat
Two-way remote control: visual feedback for order sent
2 buttons for full activation/shutdown of alarm system
2 configurable buttons with choice of following commands:
Activation/shutdown zone 1
Activation/shutdown zone 2
2 control system channels (gate, garage door, outdoor lighting, etc.)
Audio SOS with call from transmitter and trigger of sirens
Discrete SOS with call from transmitter
Relative SMS alert function: indication of activation/shutdown of system by SMS, in association with a GSM or IP/GSM transmitter
GUARANTEE - 5 years
POWER SUPPLY TYPE - Batteries
BATTERIES SUPPLIED - 1 CR2430
BATTERY LIFE - 10 years
OPERATING TEMPERATURE - -10 to 40 °C
DIMENSIONS - H 42 x L 65 x P 8 mm
No additional product required for the correct functioning of TYXAL+ TL 2000
Before using the remote control, you must:
1) Customise buttons 1 and 2 according to your requirements.
2) Associate the remote control with the alarm control unit.
3) If buttons 1 and 2 are used in mode D or E, associate them with a control system receiver
Ê Press the 1 and 21 2 buttons simultaneously for 5 seconds until the LED changes to orange.
Ë Press the 1 or 12 2 button, then select the required operating mode by briefly pressing the button as
many times as necessary: Mode A: 1 flash, Mode B: 2 flashes, ..., Mode E: 5 flashes.
Ì Press the ON button to confirm. The LED changes to green.
