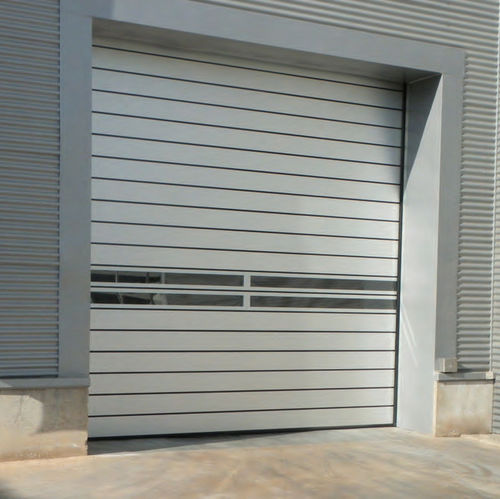

Security industrial door SPIRAL

roll-upPVCfire-rated

They are the top of the range of industrial rapid doors, they guarantee the best performance in terms of speed, safety and insulation, combined with an attractive aesthetic. GENERAL CHARACTERISTICS • M2 class PVC sheet welded at high frequency; • Aluminum or steel profiles; • Engine cover included; • Excellent finishes; • Wind resistance; • Photocell barrier; • Waterproof and reliable; • Special high rotation bearings. CLOTH CHARACTERISTICS • COVER: AT 1100 dtex polyester • COVER: 2-sided PVC • WEIGHT: 900 gr/m2 EN ISO 22786.2 • FINISH: Two-sided lacquered • THICKNESS: 0.80mm • TENSILE RESISTANCE: 400 daN/5cm 380 daN/5cm UNE EN ISO 1421 • TEAR RESISTANCE: 80 daN 50 daN, EN ISO 13937.2 • ADHESION: 10 daN/5cm • TEMPERATURE RESISTANCE: -30º +70º c • LIGHT RESISTANCE: 6 – 8 • FIRE RESISTANCE: Fireproof class M2 UNE 23723 /90
