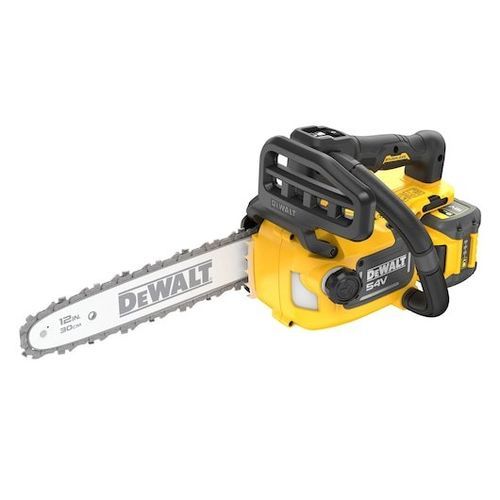

Battery-powered chainsaw DCMCST632X1-GB

Product overview
Engineered for professional arborists and tree-care specialists, the 54V XR FLEXVOLT® Compact top-handle chainsaw delivers high cutting performance in a compact, balanced design. It cuts a 250 mm diameter maple log in as fast as 6.8 seconds* (using DCB547 battery) and achieves up to 187 cuts per charge† (using DCB547 battery, cutting 100 mm x 100 mm pressure-treated pine). The advanced brushless motor provides up to 2555 W peak power and up to 2.6 Nm max torque for consistent performance. The tool is 22% more compact (tool only, by volume vs DCMCST635) for improved handling at height and during confined-work operations.

Key features

• WARNING – This chain-saw is for use by trained tree service operators only. Use without proper training can result in severe injuries.
• Cuts through 250 mm diameter maple log in as fast as 6.8 seconds* (using DCB547 battery)
• Up to 187 cuts per charge† (using DCB547 battery, cutting 100 mm x 100 mm pressure-treated pine)

Additional features

• Accelerates 0–23.6 m/s in under 0.4 s (no-load speed, using DCB547 battery)
• Peak power: up to 2555 W*
• Peak power: up to 3.42 peak HP (based on MWO, using DCB547 battery)
• Up to 2.6 Nm max torque*
• 22% more compact (tool only, based on volume vs DCMCST635)
• 30 cm (12") 0.325"LP bar and chain – optimised for battery-powered saws for high cutting capacity and smooth cuts
• Brushless motor – high performance and extended tool life
• Inertia chain brake – rapid chain stop for operator safety
• Strong harness attachment point – secure tether/harness attachment; folds for storage
• Lightweight, balanced design – reduces operator fatigue during extended use
• Ergonomic auxiliary handle – comfort for vertical and horizontal cuts
• Metal bucking spikes – provide strong bite into the cutting material
• Adjustable automatic oiler – control oiling for varied applications
• LED display – state-of-charge and overload warning indicators
• Captive bar nut – retained in sprocket cover to avoid loss and reduce downtime
• IPX4 – IP rating applies to tool only, not battery or charger

Includes

• (1) 54V XR FLEXVOLT Compact top-handle chainsaw
• (1) 0.325"LP 30 cm bar (DZO6430)
• (1) 0.325"LP 30 cm chain (DZO6530)
• (1) scrench
• (1) 4.0 mm file
• (1) bar cover
• (1) XR FLEXVOLT 9Ah battery (DCB547)
• (1) 8A fast charger (DCB118)

Specifications

• System: 54V XR FLEXVOLT® cordless platform
• Motor: Brushless motor
• Peak power: up to 2555 W (using DCB547 battery) / up to 3.42 peak HP (based on MWO, using DCB547)
• Max torque: up to 2.6 Nm*
• Bar & chain: 30 cm (12") 0.325"LP
• Recommended battery (kit): DCB547 XR FLEXVOLT 9Ah (included)
• Charger (kit): DCB118 8A fast charger (included)
• Performance examples: cuts 250 mm maple in ~6.8 s*; up to 187 cuts per charge† (100 x 100 mm pressure-treated pine, using DCB547)
• Acceleration: 0–23.6 m/s in under 0.4 s (no-load, using DCB547)
• Safety: inertia chain brake, metal bucking spikes
• Additional: adjustable automatic oiler, LED state-of-charge and overload indicators, captive bar nut
• Ingress protection: IPX4 (applies to tool only, not battery/charger)
• Size/ergonomics: 22% more compact (tool only, by volume vs DCMCST635)
• Intended use: professional arborists and trained tree service operators (top-handle design optimised for working at height)
• Notes: performance figures marked * or † are based on tests using DCB547 battery as specified by manufacturer
