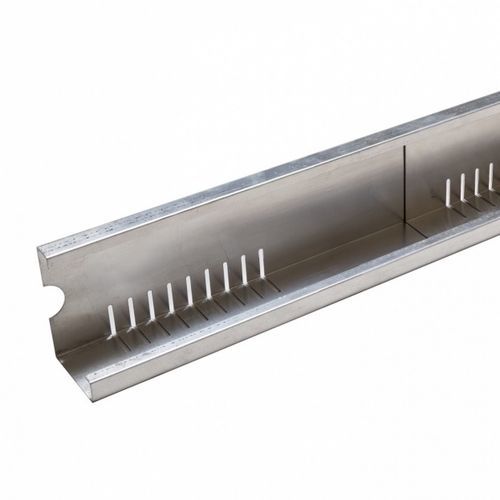

Protection edge KLS

green roofaluminumtextile

• One product can be applied for six different - two per type - media depth → board can be turned to select different heights • Sliding length adjustment avoids need to cut → telescoping design between 2 and ~ 3.9m • Stable structure → once length is set, the included locking clips prevent slippage • Increased drainage capacity by a total of 54 cm2 slots / meter, corresponding to a ® 8.2 cm drain • Secures green roof termination on a slightly inclined roof → forms a truss when used with holding textile and fixing element • Adjustable corner angles → corner elements available which can be adjusted between 88° and 359° • Rigid and stable design with clearly recognisable separation → 5-angle bent edges provide strength and visual appeal • High corrosion protection → constructed from durable and recyclable high-grade aluminum • Easy to transport and handle light construction and efficient packaging with up to 720 Im/pallet • Free standing and easy to install → fixable without adhesives or fastening, held in place by ballast Application Border of extensive green roofs, or separation of various aggregates (eg: gravel, substrate), as erosion protection and to form a roof edge in the absence of a parapet. Installed on the waterproofing membrane or on the protective layer without any roof penetration. FLL Guidelines (Edition 2008) – Section 6.11.1 – 6.11.3 Specification Length-adjustable and lockable green roof edge profile and separation board with perforation for drainage, constructed from aluminum. Supplied with two (2) locking clips, six optional heights of 6 or 9; 8 or 12; 14 or 22 cm, fixed by ballast (no roof structure penetration).
