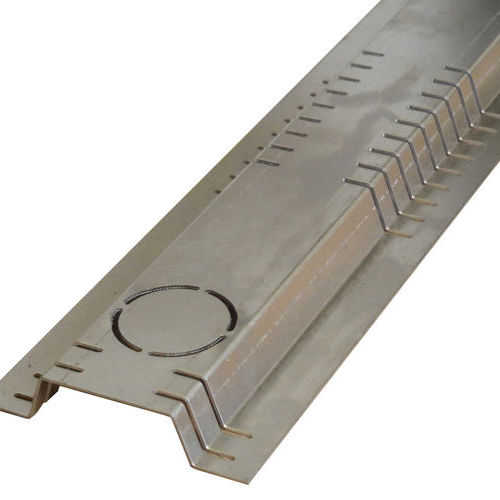

Drainage channel with grating SK-AL-24/60

aluminum gratepavingroof

Advantages • Good water draining capacity that improves the functioning of the green roof • It makes a low profile layer build-up possible • Simple installation DIADEM® build-up • extensive vegetation • extensive substrate (SEM) • SK-AL-24/60 drainage channel (may be covered with a piece of filter geotextile) • VLU-300 mechanical protection geotextile • root-resistant water proofing • further build-up Application One layered green roofs – it improves the drainage capacity where there is no dedicated drainage layer. Specification Drainage channel made of aluminium for appropriate channeling of green roofs with single-course construction or of terraces and other surfaces without drainage boards; with a pre-cut drain pipe opening with a diameter of 52 mm; dimensions: 200×12.45×2.41 cm (LxWxH); weight: 0.94 kg/piece; 0.47 kg/lm.
