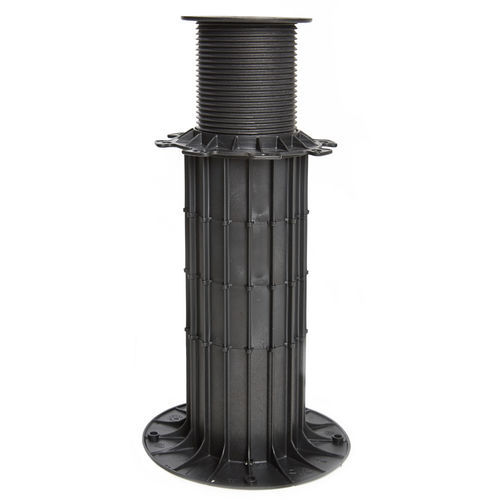

Polypropylene floor drain DiaTurtle®

patioverticalround

• Easy-fit, pluggable 60mm extension elements (DT+) → pedestals can be installed quickly and accurately, with no fine tuning or positioning necessary when adjusting height • Spacer tab (Tile Cross) can also be used with tiles, gratings and wood or WPC terraces - same pedestal for all applications • Rounded base → no damage to roof insulation • Strengthening vertical ribs run up the full height of the pedestal → load capacity up to 1000 kg/pedestal • Unhindered drainage with the open-jointed pavement using the 5 mm tile support tabs → compliance with the german Green Roof Association's (FBB) directive No.6. • Leveling up to 5% → Slope correctors of 2% and 3% can be freely combined with each other • High resistance to UV radiation, frost, chemicals, biological and other elements including bitumen → exceptionally sturdy polypropylene material • Fast installation → Height adjustment from 26-440 mm With DiaTurtle® pedestals, all kinds of decking can be set exactly to a desired height. Laying concrete slabs or wood/WPC paving on pedestals without using grout or cement offers a number of advantages when constructing a terrace. A layer of air under the paving helps to protect the roof surface and cross-ventilation prevents algae growth, discolouration, efflorescence and discourages unwanted vegetation. The lack of gravel and a sand bed reduces load and sound emission. The space created under the paving makes it easier to lay and maintain wires and cables.
