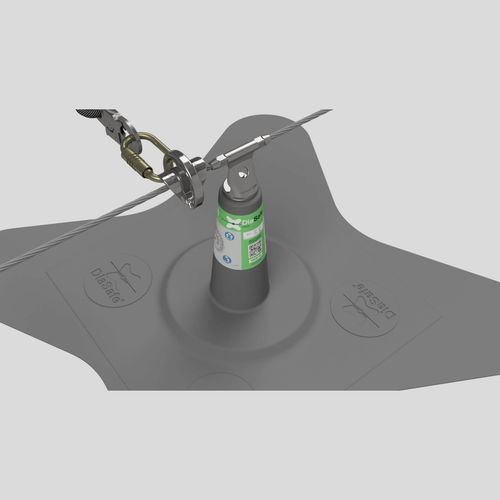

Stainless steel anchoring stud DIASAFE® GLIDE

for roof

Hands-free ⇒ continuous free movement along the whole roof edge Permanently secured by roof layer ⇒ May be fixed without penetrating the waterproofing membrane No thermal bridges ⇒ Junction elements are not necessary for installation State of the art ⇒ tested and certified to EN795:2012 (valid since 31.01.2013) and CEN/TS 16415:2013 Cost friendly ⇒ span between achoring points up to 8 m Corrosion proof ⇒ Can be installed in coastal regions with salt exposure and industrial areas affected by acid rain Vegetation Growing media or gravel DiaSafe® damping plate with integrated damping mat * VLF-150/200 filter layer * DiaDrain-25H flow-delay retention board VLU-300/VLU-500 protection layer Root-resistant waterproofing membraine Roof construction CE-marked non penetrating hands-free fall protection system, for one or for two persons, standard EN795:2012 (valid since 31.01.2013) and CEN/TS 16415:2012, class C certified, as fall arrest or fall restraint system, installed without penetrating the water membrane, with “Amoeba”-shaped damping plate, with integrated energy-absorbent anchor post of stainless steel that is resistant to acid rain in industrial regions and salt air in coastal regions, with a fibreglass laminated cone and laminated ballasting mat, in signal-green colour, with height-marking lines for assisting measurement of ballast material in dry conditions at 80 kg/m2 distributed over the ballasting mat surface, supplied as fully-functional system ready for immediate professional installation according to the approved implementation plan and laid out using guidelines provided by the manufacturer.
