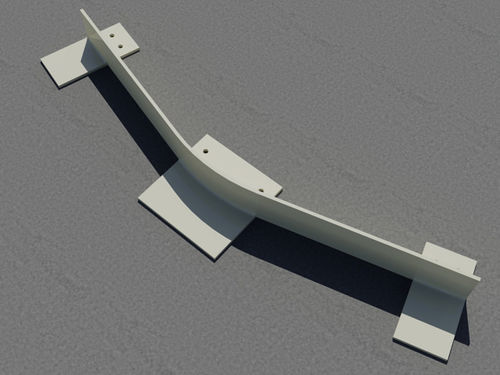

Green roof protection system DiaSchub

for erosion control

Application It serves the protection against erosion of inverted green roofs with 20°-45° of inclination or arched (barrel roofs) roofs. Suspended structure. Advantages – Can be easily and quickly filled with growth medium – Can be used on inverted and arched roofs (barrel roofs), as well Specification DiaSchub elements prevent the growing media against slipping and can be applied on green roofs with a slope from 20º to 45º. The elements have to be laid in rows and fixed to an appropriate net. Material: Polypropylene; Colour: RAL 7032; Size(L×H): 72,3×6,5 cm. Product: DIADEM® DiaSchub Manufacturer’s certificate: APP Kft. Website: www.diadem.com Technical data Height (mm): 65 Length (mm): 723 Material: Polypropylene Colour: RAL 7032 Distance between the DiaSchub elements with a slope of max. 20° (cm): 100 Distance between the DiaSchub elements with a slope of max. 21°-25° (cm): 50 Distance between the DiaSchub elements with a slope of max. 26°-35° (cm): 33 Distance between the DiaSchub elements with a slope of max. 36°-45° (cm): 25 Material requirement with a slope of 15°-20° (pc/m2): 1,4 Material requirement with a slope of 21°-25° (pc/m2): 2,8 Material requirement with a slope of 26°-35° (pc/m2): 4,2 Material requirement with a slope of 36°-45° (pc/m2): 5,6
