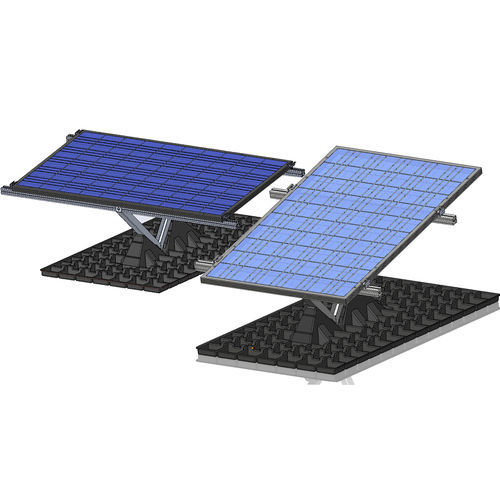

Green roof mounting system DIASOLAR®

on-roofsolarfor PV applications

• Penetration-free, ballast due to roof greening • Optimal use of roof area • No loss of yield due to shading of plants • Module height lower edge min. 30 cm from substrate • Snow slides off quickly • No accumulation heat • Quick & easy installation DIADEM® build-up DIASOLAR® WITH GREEN ROOF • DIADEM® MAT25 sedum mat • DIADEM® SEM substrate for extensive green roofs • DIADEM® DiaSolar® solar panel holder • DIADEM® VLF-150 filter and separation geotextile • DiaDrain-25H Flow-delay retention board • DIADEM® VLU-300 technical protection fleece for extensive roofs • Root-resistant waterproofing • Further layer build-up according to architect's specification DIASOLAR® WITH GRAVEL ROOF • Gravel ballast • DIADEM® DiaSolar® drainage board • DIADEM® VLF-150 filter geotextile • Root-resistant waterproofing • Further layer build-up according to architect's specification
