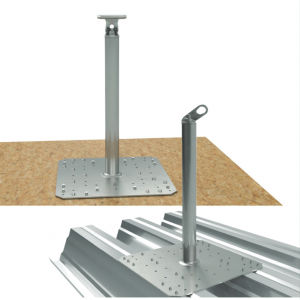

Stainless steel anchoring stud RoofX®-W/T

securityfor roof

• Smart construction → for double safety- external tube for the stability, and internal energy absorption item, made all of stainless steel • Reduces the thermal bridge effect → integrated thermostop on the footplat and filled with EPS foam • Applicable for different thermal insulation heights • Usable for construction wood and trapezoidal sheet • Same diameter of waterproofing collar for every anchor → unique tube size for single, start, intermediate, end and corner posts • Freedom by planning due to complete product range → compatible with DiaSafe® anchoring points • Optimised material usage → up to 10 m span between the posts • State of the technology → tested and cetified by TUV Austria according to EN 795:2012, type A (Single) and C (Glide), CEN/TS 16415:2013 DIADEM® build-up • Waterproofing • Thermal insulation • Construction wood / trapezoidal sheet Application Fixed fall-protection system for flat roofs to be used by roof-workers. Specification RoofX®-W/T Single or Glide stainless steel permanent anchor device for multipurpose use (for wooden or trapezoidal sheet structure) certified according to standards EN 795:2012 type “A” and „C” and CEN/TS 16415:2013, for max. 2 persons at a time, with stabilizing external tube and internal energy-absorption item, for mounting on wooden structure (min 22mm OSB3, massive wood, plywood) or for mounting on trapezoidal sheet (min. 0,75 mm thickness; S280); post height 500mm, installed with the appropriate Single head kit for single anchor point system or Glide head kit and permanent traveller device (DiaGlider-Fix) to work along a wire for wire anchor line system.
