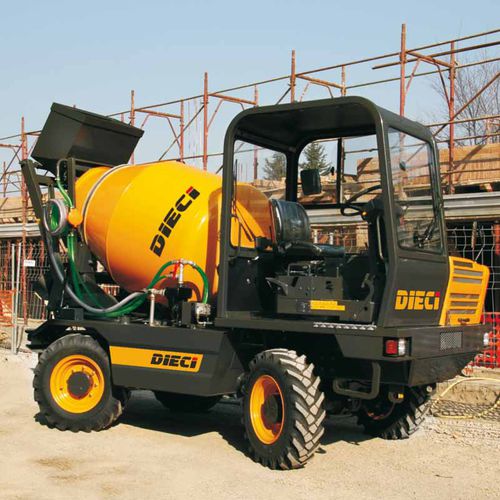

Hydraulic mixer truck AUTOBETONIERA L 3500 CCS
for concrete

hydraulic mixer truck
hydraulic mixer truck
hydraulic mixer truck
hydraulic mixer truck
hydraulic mixer truck
hydraulic mixer truck
hydraulic mixer truck
Add to favorites
Compare this product

Characteristics

Motor type
hydraulic
Applications
for concrete
Capacity.

2.5 m³ (88.29 ft³)

Description

The L3500 CCS Truck mixer is a new model of the DIECI Truck mixers series. Designed for heavy use, the L3500 CCS model is approved for road circulation even at full load. DIMENSIONS Height from ground 340 mm Maximum length 5030 mm Cab height 2915 mm Tire width 2370 mm Wheels curve radius 5330 mm PERFORMANCE Maximum speed 27 km/h Concrete yield (SLUMP 5÷9 cm – UNI EN 206-1) 2,5 m³ Water tank capacity 630 L MASS Unladen weigh t5900 kg ENGINE Brand Perkins Fueling Diesel Displacement 3621 cm³ Nominal power 85,9 kW Rpm per nominal power 2200 rpm Emission standard Stage V/Tier 4f HYDRAULIC CIRCUIT TRANSMISSION Transmission type Hydrostatic with variable displacement pump TIRES Standard tires 12.5×18″ 85,9 kW (115 HP) MAXIMUM POWER
