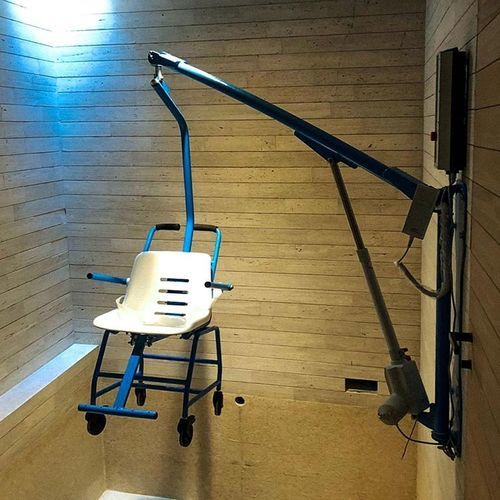

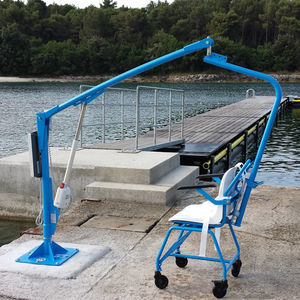

The F130 fixed lift allows, through its flagged structure, to be fixed to perimeter or bearing walls, thus eliminating the need for a basement on the ground.
The anchorage must always be carried out on a bearing wall in stone or with a thickness of more than 25 cm by means of dowels or safety counter-plate.
The lift can be equipped with a seat + wheels or a sling.
The model F130 is particularly suitable for raised therapeutic pools in masonry, whirlpools, mud therapy that are in confined spaces.
•IPX06 spiral cable push-button panel for up-down controls from the water
•Retractable leg support
•Adjustable armrests
•160° rotation
•Removable battery with charger
•Emergency stop button
•Average autonomy: 50 working cycles
•2-point safety belt
•Galvanizing and powder coating treatment
•Stainless steel frame for in-water parts
•Maximum capacity: 140 kg
•Maximum travel: 1365 mm
•Time of lowering lifting with weight into water: 20 sec
•Weight of the lift: 50 kg
•Battery: 24 V
•Different arms lengths available
•Cover for electric actuator
