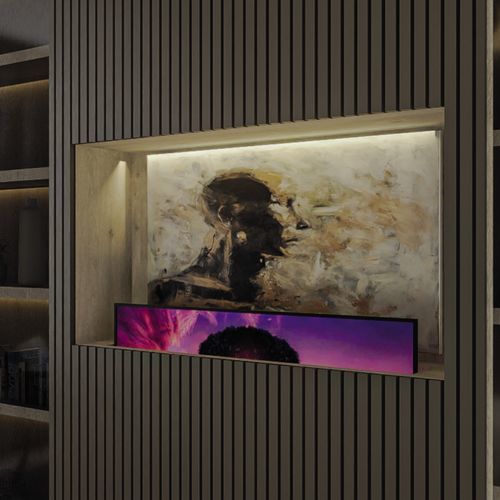

Archimede is a very resistant motorized TV lift safe and easy to install.
By installing it inside the furniture, it puts down your TV and hides it inside with a popup movement.
Archimede presents stainless steel components and anti-corrosive linear rails, thanks to a particular hard anodizing process, which guarantee very silent movements.
The rack and pinion movement, together with the ball bearings, assures sturdiness for a load up to 100 kg.
Tv monitor is fixed to two drilled mounts VESA 200 - 300 - 400 - 600 with standard hitches.
We produce models according to dimensions of your TV monitor, from 32 to 80 inches. Archimede can be started up by a 2-channel remote control, which is included, or connected to the domotics through free contacts.
The control box, heart of the system, controls and manages each mechanism operation and every security device.
The detective edges (extras) can be installed directly on the cabinet and, in case of collision or crushing, they are able to stop and reverse the movement, allowing to remove the obstacle.
Each Archimede version is entirely handmade with care in our workshop.
Archimede is a very low voltage product (24 Vdc), CE marked at GSD laboratory of Pisa.
•Stabilized power supply 110/240 V - 50/60 Hz
•2-channel remote control
•Motorized open/dose mechanism to enter the door inside the cabinet before the TV exit.
•Electronic device that starts the mechanism when turning on TV and switches it off when turning off TV
•Communication interface for computerized home environment systems
We create custom made mechanism by request.
