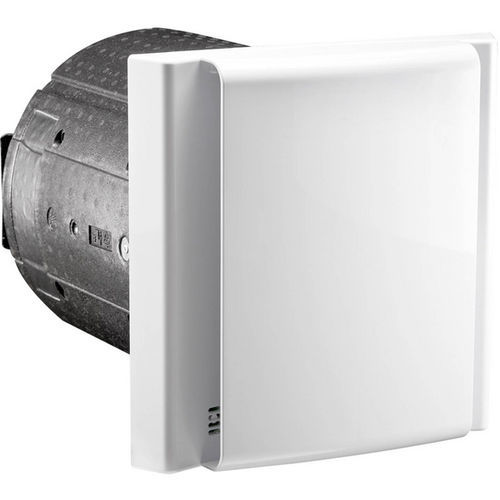

Heat-recovery ventilation unit DL 50 WA2
decentralizedresidentialfor home

heat-recovery ventilation unit
heat-recovery ventilation unit
Add to favorites
Compare this product


Characteristics

Type
heat-recovery, decentralized
Sector
residential
Applications
for home
Energy class
class B
Air flow

15 m³/h, 30 m³/h, 45 m³/h, 55 m³/h
(529.7 ft³/h, 1,059.4 ft³/h, 1,589.2 ft³/h, 1,942.3 ft³/h)

Length

340 mm
(13 in)

Width

320 mm
(13 in)

Height

340 mm
(13 in)

Sound level

51 dB

Description

Decentral domestic ventilation unit with heat recovery up to 55 m³/h air volume flow. Mounted directly on the external wall, the DL 50 WA2 decentral ventilation system is ideal for retrofitting and ventilation. Particularly with retrospective building insulation, this enables individual rooms to be aerated and ventilated in a targeted way. The EC fans are particularly quiet and thus also provide a high level of comfort. A cross-countercurrent-flow heat exchanger recovers the heat in the exhaust air to heat up the outside air. In winter, the ice protection function prevents the heat exchanger from freezing. Targeted and controlled aeration and ventilation of individual rooms. For a healthy and pleasant indoor air at any time of year. Quick, cost-effective installation. Ideal for renovations and retrofitting – particularly for insulation measures. Extremely efficient. Integrated heat exchanger uses the heat from the exhaust air to warm the fresh supply air. Continuous and comfortable heat recovery via constant volume flow. Lasting comfort. Quiet fans, low maintenance requirements, an attractive service-package with extended warranty. Guaranteed hygienic – also suitable for allergy sufferers. Effective pollen protection thanks to the high filter quality. Helps to prevent mould formation – and makes a valuable contribution to the long-term maintenance of the building structure.
