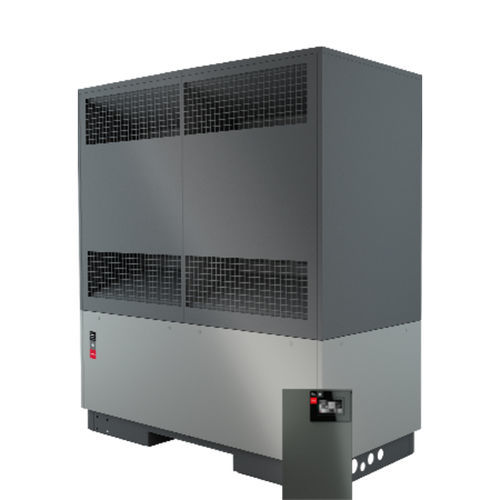

Reversible high-efficiency air-to-water heat pump
Convenient operation. The outdoor unit is operated conveniently and easily via the colour touch display on the wall-mounted controller. It can be mounted in any heated cellar or utility room.
Smart control. Using the Dimplex Home app (iOS/Android), you can access the heat pump control at any time and from anywhere. You can easily make the most important settings to the heat pump, such as summer/winter switching or setting the hot water temperature.
More possibilities. Can be connected to higher-level building management systems via various network protocols, such as Modbus, BACnet, EIB/KNX.
Energy efficiency class* with 35 °C flow temperature:A++
Cooling capacity A27/W18:32,7 kW
EER A27/W18:3,9
Cooling capacity max. A27/W18:67,1 kW
EER A27/W18 (2 compressors):3,6
Lower operating limit heat source (heating operation):-22 Grad
Upper operating limit heat source (heating operation):40 Grad
Lower operating limit heat source (cooling operation):10 Grad
Upper operating limit heat source (cooling operation):45 Grad
Max. flow temperature:64 Grad
Weight:910 k
