► - Movable partition made of independent modules suspended from an upper aluminium guide.
► - The modules hâve an internai mechanism that allows them to expand in height to adjust between guide and pavement.
► - The thickness of the partitions can be 80,100, 106 or 132mm depending on the type of panels and the acoustic insulation required.
► - The partition does not require a bottom guide for installation. When the partition is folded, ail the space is available.
► - The modules can be stacked in the centre of the rail (mono-directional System) or use multiple stacks (multidirectional System)
► - We have a movable glass partition with 1 glass of 10mm or silk-screened double glass with a total thickness of 100mm.
► - The connection between modules is made by tongue and groove aluminium profiles which hâve housing for magnetic joints for - better insulation.
► - The System allows the installation of doors incorporated in the modules that will hâve the same thickness as the partition.
► - Mobile partition has to be fixed to concrète slab or to auxiliary structure. The weight of the partition is approximately 50kg/m2
► - The mobile wall is fixed by means of threaded rods, métal plates and nuts for a perfect levelling of the guide.
► - The bearings of the movable partition are designed for smooth movement to allow effortless folding.

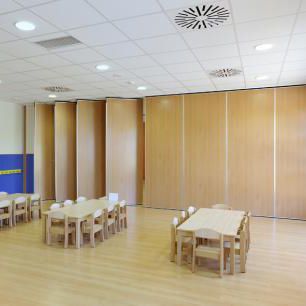

The movable partition has been designed to give maximum versatility to our space. It is particularly suitable for party rooms, hôtels, convention centres, meeting rooms, educational centres, etc.
