Automatic toilet cabin

stainless steelphenolic resinaluminium

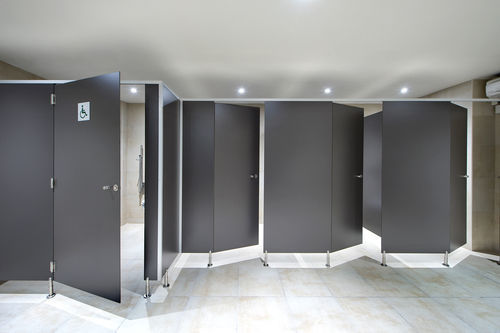

Sanitary cabins are a widely used element for the rapid construction of public toilets. For correct planning, sanitary cabins can be installed after all other work has been completed, even after the installation of the toilets. As a customised product, it will be adjusted to the site once it has been completed. It is important that the position of the sanitary ware is evenly distributed to achieve aesthetic uniformity in the position of the doors and central panels. The standard width of a door is 625mm, and the total width of a cabin is about 900mm. The depth, if the doors open inwards, is usually about 1600mm and can be reduced to 1400mm or less if the doors open outwards. The most common way is to open them inwards to avoid hitting another person when opening. The total height of a sanitary cabin is approximately 2000mm including the adjustable legs and clamps. Wider sliding doors can be incorporated for people with reduced mobility. Worktops made of phenolic with the installation of sinks, small dividers for privacy, or even large-sized flags for breaking sight when entering and leaving the bathrooms can be used to complete the bathroom installation. - Toilet partition composed of phenolic panel and accessories in stainless steel AISI 304. - Phenolic resin panel with a 12mm thick black core, totally waterproof and easy to clean. - Height-adjustable stainless steel legs. - Total panel height 1800mm. Total height including legs and top rail 2000mm. - The upper panel fastening system can be with an aluminium profile or with a stainless steel tube and clamp. - The phenolic panels are milled to overlap each other for better privacy. - The stainless steel hinges can be fitted with an internal spring for automatic closing. - The locking mechanism is equipped with an external free-occupancy indicator and an anti-locking system that allows it to be opened from the outside if necessary. - Wall starts are made by means of a U-rail screwed to the wall and riveted against the panel. - The corners are finished with a stainless steel or anodised aluminium corner profile. - The doors have a handle and can be equipped with a stainless steel coat hanger. - A kindergarten system called Laluilolo is designed for the youngest children for use in pre-schools and kindergartens. - The sanitary cabin system allows the use of wider sliding doors for people with reduced mobility. Technical characteristics / Specifications: - Material: Phenolic resin panel, stainless steel AISI 304 accessories - Panel thickness: 12mm (black core) - Panel height: 1800mm - Total height (with legs and top rail): 2000mm - Standard door width: 625mm - Total cabin width: approx. 900mm - Depth (doors inwards): approx. 1600mm - Depth (doors outwards): can be reduced to 1400mm or less - Waterproof and easy to clean - Height-adjustable legs - Upper fastening: aluminium profile or stainless steel tube and clamp - Privacy: milled overlapping panels - Hinges: stainless steel, optional internal spring for automatic closing - Lock: external occupancy indicator, anti-locking system - Wall fixing: U-rail screwed and riveted - Corner finish: stainless steel or anodised aluminium profile - Door handle and optional stainless steel coat hanger - Kindergarten version available (Laluilolo system) - Option for wider sliding doors for accessibility
