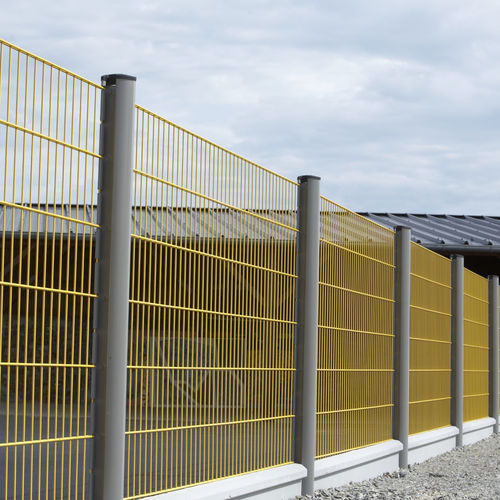

Welded mesh fence AXIS® D

industrialfor public spacesgalvanized steel

A reinforced panel providing rigidity and resilience • Flat panel • High adherence polyester-coated galvanised steel wire • Mesh: 200 × 50mm • Wire diameter: – vertical: 5mm – horizontal: 2 × 6mm • 2 widths: - 2500 mm and 2300 mm - Centre distance with AXIS® post: 2560 mm - Centre distance with AXYLE® post: 2520 mm - Centre distance with AXOR® PLUS post: 2535 mm - Centre distance with AXOR® post: 2535 mm SECURE AND SIMPLE • The double horizontal wires make the panel more rigid and resilient. • Security spikes for heights over 1.40m. • Heights up to 3.00m. QUICK AND EASY TO INSTALL • Installation in forward sequence without accessories with AXOR®, AXOR® PLUS and AXIS® slotted posts (slots into grooves on the post). • Installation in forward sequence with AXYLE® H-shaped post. • Suitable for all terrains: curved, angled or sloping premises. • On plates, on walls, with concrete gravel boards, surface mounting, extension arms, earthing, etc.
