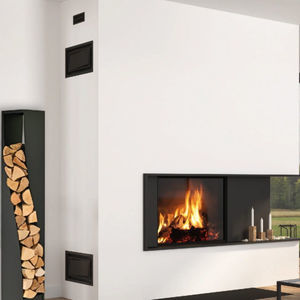

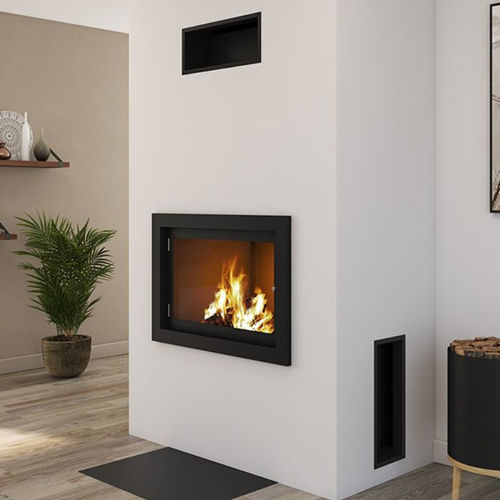

Metal ventilation grill XL’AIR

plasticrectangularinterior

Product Details
XL’AIR is a new-generation warm air circulation system, offering a very large air inlet (up to 900cm²) for a compact surface area on the external wall. It can be used for both convection and distribution.

Advantages of the system:

• Contemporary: solid front panel for complete closure of the interior of the casing
• Can be installed vertically or horizontally depending on the architecture of the casing
• Matte black finish for long-lasting integration into the heating space

Highly technical

• Fastened with 4 eccentrics for simplified installation and easy tightening
• Removable front panel (installed with clips) serving as an access panel
• Easy to install and remove

Suitable for all fireplaces

• Can be used for both distribution and convection
• Compatible with Promat Structura® HD or Placo® enclosures
• Option to integrate four Ø150 ducts (for the 700cm² air inlet version)

Compliant with current standards

• Complies with the air inlet requirements recommended by NF DTU 24.2.
• Allows inspection and maintenance of the hood. NF DTU 24.2 stipulates minimum air inlet dimensions (see diagram opposite). However, it is essential to refer to the appliance manufacturer’s instructions.

Technical characteristics / specifications

• Very large air inlet: up to 900cm²
• Compact surface area on external wall
• Usable for convection and distribution
• Solid front panel for closure
• Vertical or horizontal installation
• Matte black finish
• Fastened with 4 eccentrics
• Removable front panel with clips
• Compatible with Promat Structura® HD or Placo® enclosures
• Option for four Ø150 ducts (700cm² version)
• Complies with NF DTU 24.2
