Louvered fence HORIZON 010

gardenresidentialcommercial

Product overview

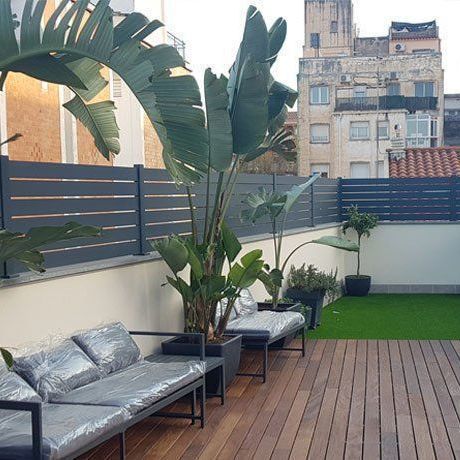

The Horizon 010 aluminum fence from Dlimity is designed for gardens and architectural perimeters. It features horizontal slats with a 10 mm spacing that provide a contemporary appearance while allowing ventilation and partial visibility. The system is supplied in kit form for on-site assembly and can be custom made to width specifications.

Key features

• Model: Horizon 010 (horizontal slats, 10 mm spacing)
• Materials: aluminum posts and horizontal slats (anthracite gray). Some product texts reference virgin PVC slats combined with an aluminum finish.
• Slat spacing: 10 mm (1 cm)
• Heights available across the Horizon aluminum range (see Height Range)
• Made-to-measure up to 200 cm maximum width between post axes
• Warranty: 7 years
• Delivered in kit form for straightforward assembly

Installation / Components

• Standard posts: 80 x 50 mm
• Corner / angle posts: 65 x 65 mm
• Slat dimensions: 100 x 30 mm

Height range (Horizon aluminum range heights)
Horizon 010 | Horizon 020 | Horizon 050 | Horizon 100 | Horizon 150 | Horizon 200 | Horizon 250
33 cm | 36 cm | 30 cm | 40 cm | 25 cm | 30 cm | 35 cm
44 cm | 48 cm | 45 cm | 60 cm | 50 cm | 60 cm | 70 cm
55 cm | 60 cm | 60 cm | 80 cm | 75 cm | 90 cm | 105 cm
66 cm | 72 cm | 75 cm | 100 cm | 100 cm | 120 cm | 140 cm
77 cm | 84 cm | 90 cm | 120 cm | 125 cm | 150 cm | 175 cm
88 cm | 96 cm | 105 cm | 140 cm | 150 cm | 180 cm | (empty)
99 cm | 108 cm | 120 cm | 160 cm | 175 cm | (empty) | (empty)
110 cm | 120 cm | 135 cm | 180 cm | 200 cm | (empty) | (empty)
121 cm | 132 cm | 150 cm | 200 cm | (empty) | (empty) | (empty)
132 cm | 144 cm | 165 cm | (empty) | (empty) | (empty) | (empty)
143 cm | 156 cm | 180 cm | (empty) | (empty) | (empty) | (empty)
154 cm | 168 cm | 195 cm | (empty) | (empty) | (empty) | (empty)
165 cm | 180 cm | (empty) | (empty) | (empty) | (empty) | (empty)
176 cm | 192 cm | (empty) | (empty) | (empty) | (empty) | (empty)
187 cm | (empty) | (empty) | (empty) | (empty) | (empty) | (empty)
198 cm | (empty) | (empty) | (empty) | (empty) | (empty) | (empty)

Technical specifications

• Model name: Horizon 010
• Slat spacing: 10 mm (1 cm)
• Slat size: 100 x 30 mm
• Post sizes: 80 x 50 mm (standard), 65 x 65 mm (corner/angle)
• Maximum width between post axes: 200 cm (made to measure)
• Available heights: from 33 cm up to 198 cm depending on model
• Finish: anthracite gray aluminum (some references indicate an aluminum gray finish; product may include virgin PVC slats in certain variants)
• Warranty: 7 years
• Delivery: kit for assembly
