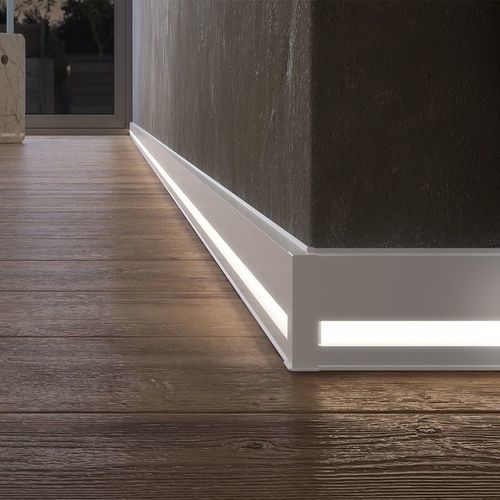

Floor lighting profile 80

floorLEDPVC

Overview
The Cubica lighting system is a highly flexible lighting solution suitable as an accent light for comfortable interiors or as a safety/orientation solution for hotels, ships and healthcare facilities.

Cubica Light System product information

• Two-part profile: base and polyblend PVC cover profile with flexible upper and lower lips (cover profile can be snapped on).
• Matching accessories available (inner/outer corners, end caps, interconnections).
• High-quality LED strip easy to adhere (self-adhesive, cuttable every 5 cm, uniform light emission). The LED strip is included in the separate starter kit.
• Can be combined with Cubu flex life XL 80 (same decors and geometry).
• Suitable for all floor types as a light/cable channel.
• Cubica LS cover profile also available in part.

Advantages

• High-quality LED strip with uniform light distribution, no visible hotspots.
• Can be cut individually to the required length.
• Simple assembly without additional tools or prior knowledge.
• Usable as a cable channel profile or as a combined lighting and cable-channel profile.
• Smart-Home ready (integration into existing systems possible).
• Prefabricated starter packages with all necessary components or project-specific adaptation possible.

Sets available

• Starter set: suitable for 5 m LED strip; includes (A) extension cables, (B) connectors (LED strip to cable), (C) connectors (LED strip to LED strip), (D) LED connection cable, (E) Y distribution cable, (F) power supply (transformer for 230 V socket), (G) LED strip.
• Control kit: radio plug and radio switch (radio control).

Accessories

• 1 pack = 5 x 1 piece (inner and outer corners, connector).
• 1 pack = 5 x 2 pieces (end caps).

Colors / decors

• 1160 aluminum
• 1207 white
• 1245 champagne
• 1209 anthracite

Light variants

• Available in three different variants:
• without light (cable channel)
• with light (illuminated)
• light off

Usage and installation advice

• Recommended tools and materials: mitre saw, notch pliers, skirting shears, flat-head screwdriver, screws, side cutters, Döllken hot glue.
• Quick installation possible with starter kits; plug & play for connection and commissioning.
• Support and pre-assembly for individual projects available.

Technical features / specifications

• Construction: two-part profile (base + polyblend PVC cover profile) with flexible upper and lower lips; snap-on cover profile.
• LED strip: self-adhesive, cuttable every 5 cm, uniform light emission, included in the separate starter kit.
• Compatibility: can be combined with Cubu flex life XL 80 (same decors/shape).
• Use: suitable as cable duct and/or lighting profile for all floor types.
• Functions: Smart-Home ready, prefabricated starter packages or project adaptation possible.
• Accessories: inner/outer corners, end caps, interconnections, connectors and 230 V power supplies available.
