Handrail with integrated LED lighting

LED

Overview
The tunnel emergency handrail guidance system with integrated LED lighting is designed to improve orientation and safety in tunnels. It is the world’s first handrail able to accommodate up to three integrated LED strips, delivering clear orientation in emergencies and optimized illumination of escape routes and signage.

Design and functionality

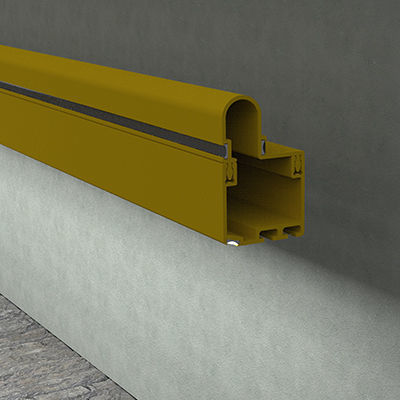

The system comprises two profile components: a lower profile that houses a mounting bracket and a robust, fully protected LED strip to illuminate the escape route; and an upper profile that serves as the handrail and contains a second (Up-Light) and a third (Front-Light) LED strip to provide unambiguous orientation. The Up-Light is directed toward the tunnel wall and can illuminate wall signage; the Front-Light points toward the tunnel centre. All three options are used in crossing sections where emergency exits are located.

Lighting options

• Down-Light: optimum illumination of escape routes; LED strips meet at least the EU 1 lux requirement for train tunnels.
• Up & Front-Light: Up-Light illuminates the tunnel wall and signage; Front-Light illuminates the tunnel centre to improve overall visibility.
• Light on Sign: important signs are illuminated by LED strips integrated into the handrail.

Benefits

• Complies with the latest EU regulations
• Closes safety gaps within the tunnel
• Innovative LED technology offering energy efficiency and flexible lighting design and control
• Complete security solution from a single source; fully developed and manufactured by Döllken Profiles in Germany
• Fast assembly and simplified installation and repair processes, reducing tunnel downtime
• Reduces the need for additional ceiling lighting inside tunnels

Technical features / specifications

• Up to three integrated LED strips: Down-Light, Up-Light and Front-Light
• Two-profile design: lower profile with protected LED strip for escape-route illumination; upper profile serving as the handrail housing additional LED strips
• LED strips meet at least the EU 1 lux requirement for train tunnels (escape-route illumination)
• Up-Light directed to the tunnel wall (can illuminate signage); Front-Light directed to the tunnel centre
• Intended use in crossing sections/emergency exits to ensure maximum orientation
• Designed and manufactured by Döllken Profiles in Germany; development started in 2018, series production initiated in 2023
• Fast assembly and maintenance enabling quicker installations and repairs with reduced tunnel closures
