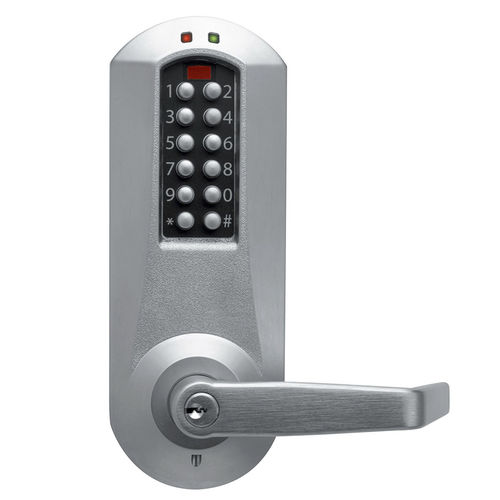

Mechanical lock E-Plex 5000 Series

electronicfor entry doorwith handle

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software. Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software Locking Device Options: • Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and Mounting Hardware not included) • American Standard Mortise: With 1" (25 mm) and 1¼" (32 mm) face plate; with and without Deadbolt Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events. Programming: Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and accesspoints grow Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field Key Override: • Key-in-lever cylinders • Small format interchangeable cores • Large format removable cores Operation Modes: • PIN access • Lockout • Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)
