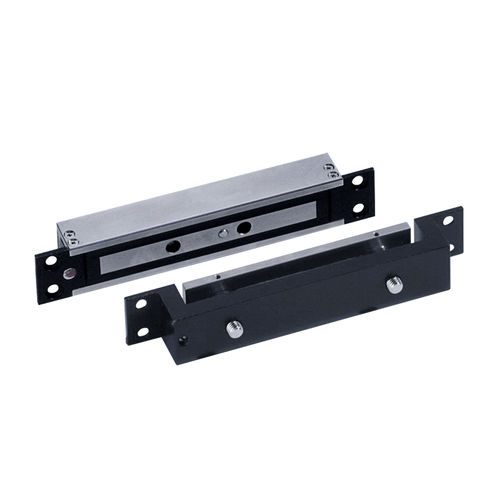

Electromagnetic lock EM SERIE

EM Magnets come in a range of models to suit single or double leaf doors and can be combined, for example, with an access control system or used instead of an electric strike where higher holding forces are required. Thanks to their ease of installation and inconspicuous appearance, dormakaba EM magnets are an excellent retrofit solution. • All magnets with electro-magnetic locking • Anti-corrosion protected, sturdy metal case • Suitable for temperatures between –60 and +80°C • Designed for connection to 12V or 24V DC supplies • Before installing electro-magnets on fire doors please check with the fire door manufacturer to ensure compliance Features of the EM 1800 N • Holding force 1,800N • For mounting on the frame or installation within the frame • With checkback signalling of locked / unlocked status Features of the EM 3000 N • Holding force 3,000 N • Specially slender design • For mounting on the frame or installation within the frame • Available with optional checkback signalling for locked / unlocked status • Available with optional lock status indicator Features of the EM 5300 N • Holding force 5,300N • For mounting on the frame • Available with optional checkback signalling for locked / unlocked status • With option of two magnets for double leaf doors • Available with optional lock status indicator Features of the EM 7500 N • Holding force 7,500 N • Water protected stainless steel construction • For external applications • With 5 m connection cable • In frame installation • Also suitable for use in conjunction with double action doors • With checkback signalling of locked / unlocked status
