Facade fixation cylinder RONDOLINE®-PUfor facade coveringfor curtain wallfor insulated facade
Add to favorites
Compare this product
Characteristics
- Applications
- for insulated facade, for facade, for curtain wall, for facade covering
- Diameter
90 mm, 125 mm
(4 in, 5 in)- Thickness
60 mm
(2 in)- Specific weight
300 kg
(661.39 lb)
Description
Fixation cylinders Rondoline®-PU are suitable as pressure pads for high pressure loads and also as mounting in thermal insulation composite systems of expanded polystyrene (EPS) and rock wool (SW).
Description

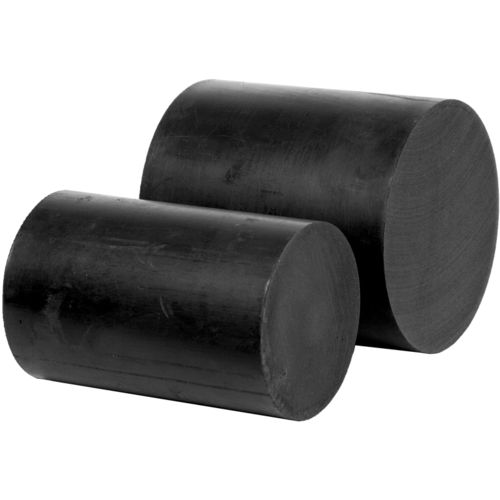

Fixation cylinders Rondoline®-PU are formfoamed cylinders made of black-coloured, rot-resistant and CFU-free PU-rigid foam plastic (polyurethane). They are available in two different diameters.
Wood or sheet metal screws are suitable for the screw connections in fixation cylinder Rondoline®-PU, likewise, screws with cylindrical threads and larger pitch (e.g. frame screws). In case of large tensile or lateral loads, the anchorage must be made in the underground.
Dimensions
Useful surface diameter:50 / 85 mm
