Power socket PCS145

USBdoubledesk

Description

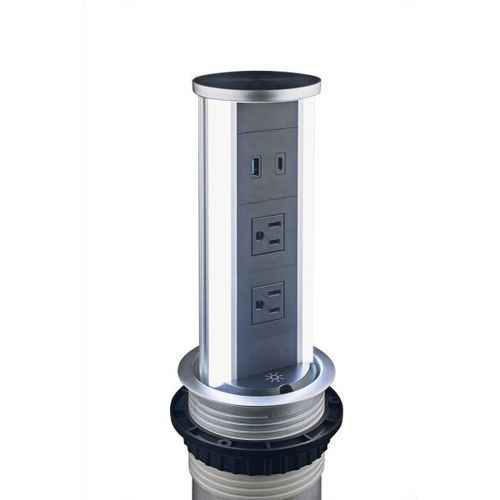

The PCS145 is a pop-up power hub engineered for shared workspaces and meeting surfaces. It rises smoothly from the surface to reveal two tamper-resistant power outlets, a dual USB-A + USB-C charger and a 10W wireless charging pad on top. When closed, the unit sits nearly flush, keeping work surfaces clear while providing on-demand power and lighting.

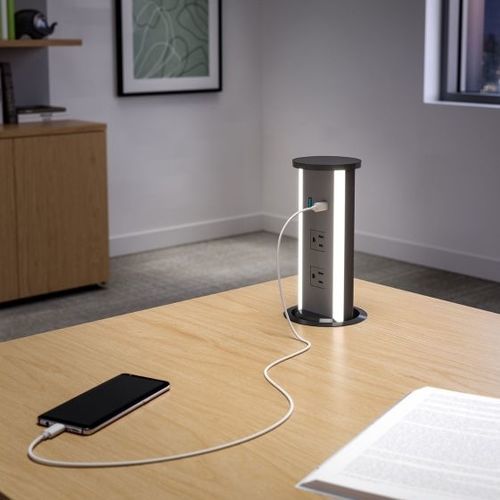

Use cases

• Conference tables and boardrooms
• Coworking and collaborative workstations
• Training rooms, reception desks and private offices

Features

• 2 tamper-resistant AC outlets (15A / 125VAC)
• Dual USB-A + USB-C charging ports for device and accessory power
• 10W Qi-style wireless charging pad on top
• Integrated dimmable LED workstation light with touch brightness control
• Overload protection switch for safety
• Smooth-gliding aluminum tower with precision fit
• Dual-sided access for shared surfaces

Product Details
Overall dimensions: 21 13/32" x 4 17/32" (approx. 543 mm x 115 mm)
Cut-out required: 4" (101.6 mm)
Power cord length: 5 ft (1.52 m)
Finishes available: Satin Black, Satin Aluminum

Certifications
ETL listed; tested to meet UL962A (Furniture Power Distribution) and CSA C22.2 No. 308:18. Electrical codes vary by location; verify local code compliance prior to installation.

Technical specifications

• Model: PCS145
• Power outlets: 2 tamper-resistant outlets, 15A / 125VAC
• USB charging: Dual USB-A + USB-C ports
• Wireless charging: 10W Qi-style wireless charging pad on top
• Lighting: Integrated LED dimmable workstation light; touch switch for brightness control
• Protection: Overload protection switch
• Access: Dual-sided access for shared work surfaces
• Materials: Smooth-gliding aluminum tower with precision fit
• Dimensions: 21 13/32" x 4 17/32" (overall); 4" cut-out required
• Power cord length: 5 ft (1.52 m)
• Finishes: Satin Black, Satin Aluminum
• Certifications: ETL listed; meets UL962A and CSA C22.2 No. 308:18
