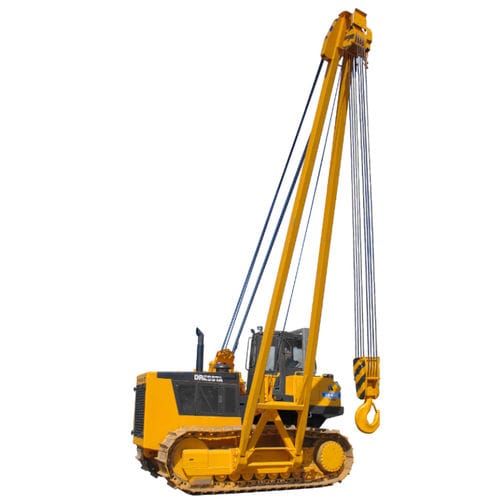

The Dressta SB-60 Series of pipelayer comes equipped to lift pipe-loads up to 72t and has an operating weight of 51.1t. A large one-piece mainframe ensures rigid stability and reliability, and hydraulic controls allow for continuously smooth operation.
The SB-60 is designed to perform in the most challenging of conditions. It features an ergonomic joystick control for boom and hook, which ensures precise and predictable load control and positioning.
BASIC SPECIFICATIONS
Engine238 kW
Weight51.1 t
Max. Lifting Capacity72.0 t
KEY SPECIFICATIONS
Driveline
Engine Manufacturer / Model / TierCummins/QSG12/T4F
Displacement11.80 l
Rated Speed2000 RPM
Engine Output - Net238 kW
Rated Speed - Torque1400 RPM
Engine Torque1862 Nm
Transmission Type - Fwd Rev SpeedsPowershift - 6/6
Track Shoe Width762 mm
Capacities
Fuel Tank690 l
Dimensions
Ground Clearance500 mm
Track Length - On Ground3520 mm
Overall Length5460 mm
Ground Clearance500 mm
Transport Width - Side Frames Removed3600 mm
Boom Length7315 mm
Width - Weights Retracted3600 mm
Cable Size - Hook Winch0.019 m
Cable Length - Hook Winch0.092 m
Performance
Ground Bearing Pressure93.80 kPa
Lift Capacity - Tipping72000 kg
Load Capacity62000 kg
Speed Forward3.70 km/h
Operating Weight
Operating Weight48000 kg
