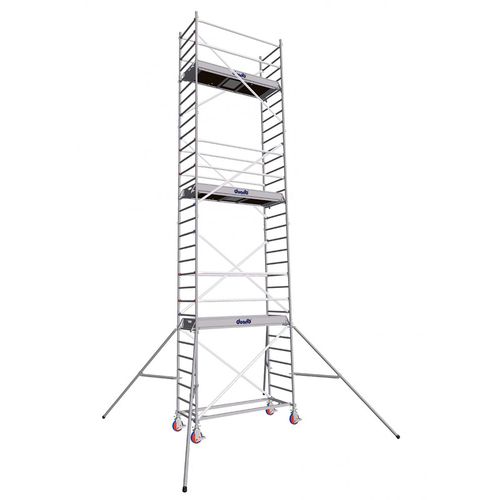

Wooden scaffolding 254 SERIES

aluminumhighon casters

KEY FEATURES With its high manoeuverability, lightness and safety, the Docker 85 aluminium mobile scaffold towers offers increasing technical prowess. High-standard worksmanship. Width: 0.85 m – Lenght: 2.54 m. Working height up to 13.90 m. Safety: 3 Safe installation of horizontal braces and intermediate braces. 4 exclusive patents. Safe complete assembly. Reinforced ladder edges. Captive pins fixed on the ladders. Diagonal braces and rails set with "Click" clamping. Platform with two trapdoors. Robust axed wheels. Integrated difference-in-height set-up. SPECIFICATIONS Aluminium. Decree 2004-924 / Standard NF EN 1004. Certified to logo NF French standard. Uprights Ø: 45 mm. Max. work height: 13.90 m. Width: 0,85 m – Length: 2,54 m. Overall size: Width : 0,96 m - Length : 2.66 m. Load capacity per platform: 292 kg. Usable area: 2.44 x 0.60 m. Safe assembly and disassembly by a single operator. Compact base. Aluminium/wooden platform - 1 trapdoor. Integrated aluminium toe-boards. DS1 or DS2 stabilizers depending on the height. ø 200 mm wheels - height adjustment screw adjustable over 20 cm. Maximum difference in level setup: 1.50 m. Assembly type: welded. Made in France.
