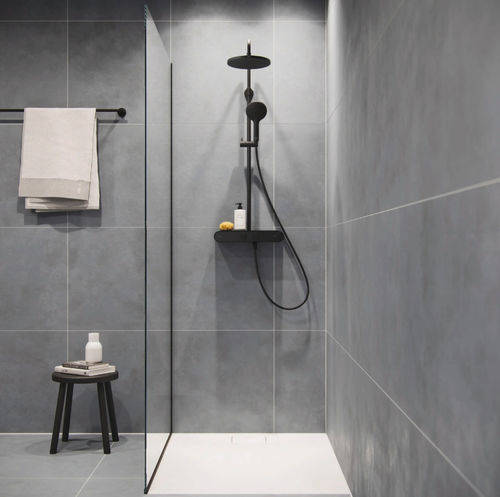

Thermostatic shower column TH4382008046metalsilver-coloredmatte black
Add to favorites
Compare this product
Characteristics
- Type
- thermostatic
- Material
- metal
- Finish
- matte black, silver-colored
- Installation
- wall-mounted
- Style
- contemporary
- Options
- with hand shower, with shut-off valve
Description
Overview
Key features
Additional notes
Dimensions
Height: 940 mm
Depth / Width: 524 mm
Diameter of showerhead: 230 mm
Technical specifications
- Duravit Shower Systems shower system in Black Matt (finish)
- Article number: #TH4382008046
- Incl. shower hose (length 1600 mm), hand shower and showerhead
- Hand shower holder: height adjustable
- Height of system: 940 mm
- Showerhead diameter: 230 mm; showerhead angle adjustable (±20°), swivelling
- Connection type: S-connections, water supply connection size DN15 / 1/2"
- Exposed installation
- Thermostatic cartridge; integrated safety lock at 38 °C (HeatLock)
- Recommended operating pressure: 1 - 5 bar
- MinusFlow: resource-saving flow rate of 9 l/min for hand shower and showerhead (3 bar)
- Non-return valve in the hose connection
- Centre distance: 150 mm ± 12 mm
Key features
- MinusFlow: Reduced flow rate without compromising comfort for particularly economical water consumption (9 l/min)
- EasyClean: Silicone nubs enable easy removal of limescale and dirt deposits by gentle wiping
- Click!: Change the spray mode or select the desired outlet at the touch of a button
- HeatLock: Integrated safety stop at 38 °C to reduce risk of scalding
- Height-adjustable overhead shower and hand shower holder
- Thermostatic cartridge ensures constant water temperature
- Suitable for operation with a continuous-flow heater
Additional notes
- Operation technology: At the touch of a button
- Outlet / Diverter: Shut-off valve with volume control
- Flow rate hand shower (3 bar): 9 l/min
- Flow rate showerhead (3 bar): 9 l/min
- Spray mode showerhead: Rain
- Spray mode hand shower: Pulse, Mono, Rain
Dimensions
Height: 940 mm
Depth / Width: 524 mm
Diameter of showerhead: 230 mm
Technical specifications
- Dimension of connection hose: 1/2"
- Dimensions of water supply connection: DN 15
- Connection type for water supply connection: S-connections
- Recommended operating pressure: 1 - 5 bar
- Temperature control: Thermostat cartridge
- Operation technology: At the touch of a button
- Spray mode selection: Push button
- Outlet / Diverter: Shut-off valve with volume control
- Hand shower holder: Height adjustable
- MinusFlow: Yes (9 l/min)
- Suitable for continuous-flow heater: Yes
- Showerhead angle adjustable: Yes (±20°)
- Safety lock at 38 °C: Yes (HeatLock)
- Silicone nubs / EasyClean: Yes
- Flow rate of hand shower (3 bar): 9 l/min
- Flow rate of showerhead (3 bar): 9 l/min
- Spray mode showerhead: Rain
- Spray mode hand shower: Pulse, Mono, Rain
- Height: 940 mm
- Depth/Width: 524 mm
- Diameter of showerhead: 230 mm
- Centre distance: 150 mm ± 12 mm
