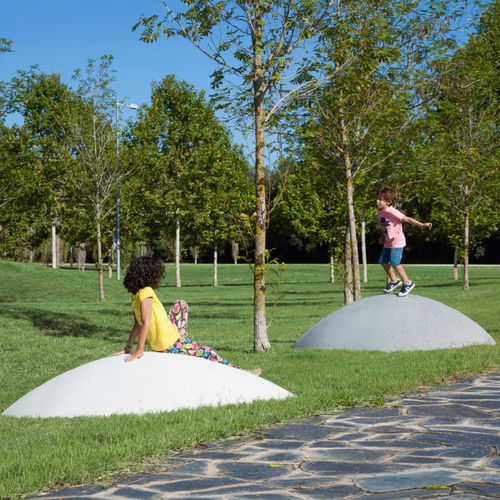

Islands alternates the properties of two urban furniture elements with the landscape emplacement through volumes that connect people with the natural environment. Its concave geometry, manufactured in UHPC, makes it a self-standing product which does not require anchors. It also has a threaded bolt in the upper vertex that facilitates its handling when installation operations take place.
Material: UHPC concrete, colored in mass, acid etched and waterproofed.
Dimensions / Weight:
Island S: 280 x 195 x 52, 1.100kg
Island L : 320 x 220 x 76, 1.650kg
Installation: Supported on the ground.
UHPC concrete landscape element colored in
mass, acid etched and waterproofed.
UHPC with various resistances depending on the
needs of the piece. With a minimum cement content
of 700kg/m3. Compressive strength 90-150 MPA.
Flexion strengh 16-35 MPA. Cement: PORTLAND
(BLIIB-LL52.5-R) cement and GRIFFI (BLIIB-
LL52.5-R). Fiber: AR glass fber, or metal fibers in
various formats depending of the piece. Aggregates:
siliceous aggregates minor than 1mm. With warranties
and EEC certifcate. Water: Does not contain
impurities, silt or suspended organic components that
can affect the quality of concrete such as structural
concrete. Armed: steel welded with corrugated steel
mesh B500 S (UNE3092).
Acid etching, leaving the aggregates on the surface
and waterproofed. With anit-graffiti finish.
Colors available according to color chart.
