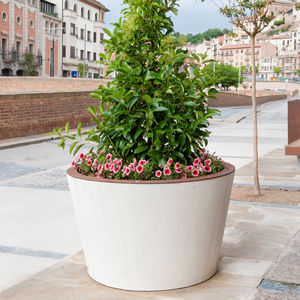

The Frac planter, with rounded geometry and made of UHPC concrete, is developed from the idea of a Planter that can hold either plants or even small format trees.
Material: Colored in mass UHPC concrete, acid etched and waterproofed.
Dimensions / Weight:
Frac S: ø 75 x 70, 300kg
Frac L: ø 100 x 92, 500kg
Installation: Supported on the ground.
UHPC concrete planter colored in mass, acid etched and waterproofed.
UHPC with various resistances depending on the needs of the piece. With a minimum cement content of 700kg/m3. Compressive strength 90-150 MPA. Flexion strengh 16-35 MPA. Cement: PORTLAND (BLIIB‐LL52.5‐R) cement and GRIFFI (BLIIB‐LL52.5‐R). Fiber: AR glass fber, or metal fibers in various formats depending of the piece. Aggregates: siliceous aggregates minor than 1mm. With warranties and EEC certifcates and ISO9001: 2000 SIMO. Water: Does not contain impurities, silt or suspended organic components
that can affect the quality of concrete such as structural concrete. Armed: steel welded with corrugated steel mesh B500 S (UNE3092) Surface finish: acid etching, leaving the aggregates on the surface and waterproofed. With anit-graffiti finish. Colors available according to color chart.
Optional paint finish with epoxy-polyurethane UV resistant system, glossy finish.
Available in any RAL color.
The installation is surface mounted. Handling with long polyester slings.
