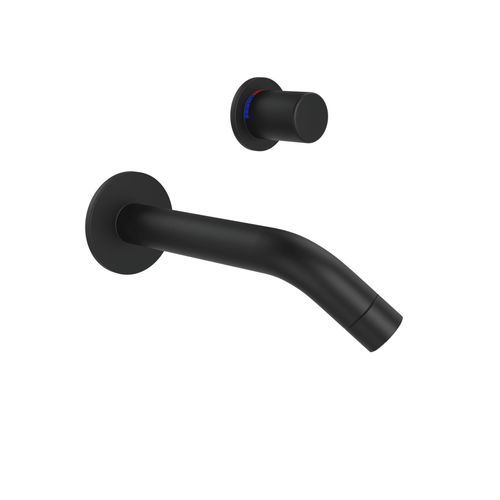

Washbasin mixer tap R336-N

built-inembeddedwall-mounted

Overview
Touch-free sensor mixer tap with temperature adjustment lever designed for through-wall (wall‑to‑wall) installation. Suitable for washbasins where concealed installation and a clean façade are required.

Key features

• For through-wall installation
• Flow rate preset at 1.89 l/min (0.5 GMP)
• Adjustable flow rate, anti-splash aerator
• ACS / WRAS / Watermark certified
• LEED compliant
• BREEAM compliant
• 10-year warranty

Dimensions
Ø25 x L195 mm

Available finishes

• edstal
• koveta (matt black)
• ståljus (chrome)
• iflusse (brushed brass)

Specifications
Example: Duten R336 touch-free wall mounted sensor mixer, finish to be specified. Or approved equivalent model.

Technical specifications

• Model: R336-N
• Type: Touch-free sensor mixer tap with temperature adjustment lever
• Installation: Through-wall
• Flow rate preset: 1.89 l/min (0.5 GMP)
• Flow: Adjustable
• Aerator: Anti-splash aerator
• Temperature control: Yes (adjustable)
• Certifications: ACS, WRAS, Watermark
• Compliance: LEED, BREEAM
• Warranty: 10 years
• Dimensions: Ø25 x L195 mm
• Category: Sensor taps
