Metal swing BIGGO SPIA SOLO ASSEMBLY 2

playgroundmultiple

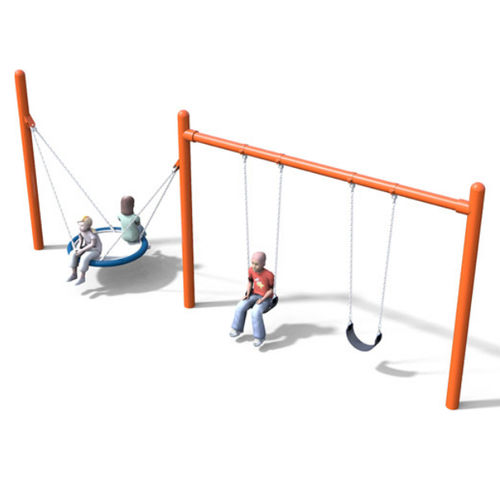

The Biggo Spia Solo Assembly 2 demonstrates that a Biggo Swing fits in nicely anywhere. Here it is displayed with two regular swings to offer variety. Specifications Size -- Width6.53 m Size -- Height2.67 m Ages2 - 12 yrs Capacity6 Use Zone -- Length9.17 m Use Zone -- Width10.33 m Fall Height2.29 m Product Features: SUPPORT POSTS: This will be 5 9/16" (141.3mm) OD Schedule 40 steel pipe. PENDULUM PIVOT: This will be a stainless steel pivot with a self-lubricating UHMWPE bushing and pivot. SUSPENSION CHAIN: This will be either 5/16" or 8 mm galvanized steel chain. Each chain will have independent connections at seat and pivot. SEAT CONNECTION: The seat will be connected to the chain at four points, each by a one-piece machined stainless steel sleeve. (Patent Pending) SEAT BUMPER: This will be 3 1/2" (90mm) OD textile reinforced high-pressure rubber hose, containing no external dye markings and covered with a wear and soil resistant surface. BIGGO™ SEAT: This will be a one-piece aluminum bowl, weighing with its bumper and pieces no more than 42 lbs (19 kg) empty. BASIC FASTENERS: All fasteners for component attachments are stainless steel. PAINT PROCESS: All exposed steel will be finished with polyester powder coating unless otherwise specified. Prior to the powder coating application, the surface will undergo sand blasting and will be treated with a zinc rich epoxy primer having a minimum thickness of 1.5 mils.
