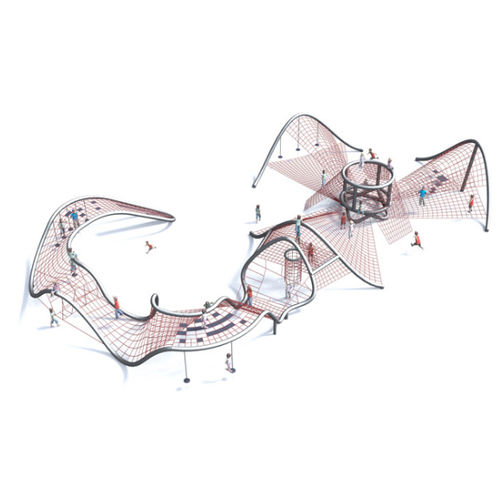

Playground climbing structure STINGRAY

with trampoline

We have all dreamt of swimming with Stingrays and being mesmorized by the way they move so effortlessly in the water. The Stingray ropes course mimicks this dream perfectly and allows children to challenge themselves with every inch of this game. Specifications Size -- Length 25.80 m Size -- Width 20.95 m Size -- Height 3.47 m Ages 5 - 12 yrs Capacity 137 Use Zone -- Length 30.06 m Use Zone -- Width 25.21 m Use Zone -- Area 466.17 m2 Fall Height 3.47 m Product Features: SUPPORT POSTS: This will be 4 1/2" (114.3mm) OD Schedule 40 6061-T6 aluminum tubing with a minimum 15/64" (6.02mm) wall thickness. The posts will be connected to the contoured frame by 4" OD Schedule 40 6061-T6 aluminum sleeving into a coped housing to prevent exposed joints. CONTOURED FRAME: This will be 8 5/8" (219.08mm) OD Schedule 40 6061-T4 aluminum tubing with a minimum 21/64" (8.179mm) wall thickness. 20MM ROPE: These will be 20 mm diameter polyamide (nylon) / polyester rope cable with UV protection and fire retardant solution. Each rope consists of 6 strands each containing at least 24 galvanized steel reinforcing wires within a polyamide (nylon) / polyester braid, wrapped around a solid polymer core for a total of at least 144 galvanized steel reinforcing strands. Rope shall achieve a Class 7-8 Colourfastness rating. PAINT PROCESS: All exposed aluminum will be finished with polyester powder coating. Prior to the powder coating application, the surface will undergo sandblasting and will be treated with an electrostatic primer having a minimum thickness of 1.5 mils.
